NEMA 8 Geared Stepper Motor L=28mm Reduction Ratio 5:1 Planetary Gearbox

$45.00

In Stock:

10

Model: 20AI28-0504A-PG5

Weight: 0.2KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 8 Short Geared Stepper: This micro NEMA 8 short geared stepper motor has a frame size 20-28mm with rated current 0.5a, integrated with a PG series planetary gearbox of gear ratio 4.75:1. It is an ideal choice for the applications that require high torque or low speed but high precision motion control.

NEMA 8 Short Geared Stepper Specification

  • Part Number: 20AI28-0504A-PG5
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 0.02Nm w/o gearbox
  • Rated Current/phase: 0.5A
  • Frame Size: 20x20mm
  • Motor Length: 28mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Gearbox Type: Planetary
  • Gear Ratio: 4.75:1
  • Efficiency: 90%
  • Backlash at No-load: 1.0deg
  • Gearbox Length: 21.2mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 15mm
  • D-cut Length: 9mm
  • Steppe Drive: FLKH2D0228DC

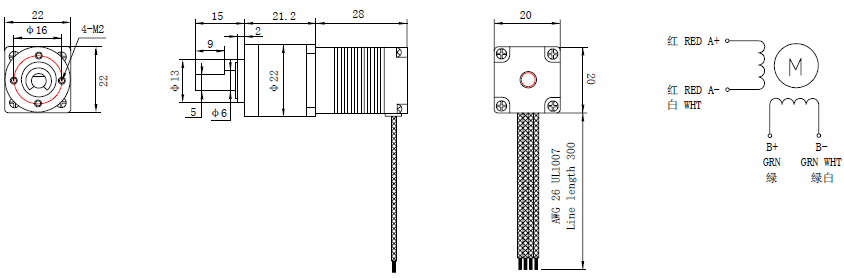

Overall Size

NEMA 8 Short Geared Stepper
