Size 57mm NEMA 23 Short Stepper Motor Bipolar 1.8deg 0.8Nm 2.8A 57x35mm 4 Wires

Size 57mm NEMA 23 Short Stepper Motor Bipolar 1.8deg 0.8Nm 2.8A 57x35mm 4 Wires

$12.50

In Stock:

10

Model: 57AI35-284A-24Y

Weight: 0.45KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 23 Stepper Motor 35mm: This size 57mm NEMA 23 short hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a ultrathin body length 35mm. Each phase draws a current 2.8A, allowing for a strong holding torque of 0.8Nm.

NEMA 23 Stepper Motor 35mm SpecificationNEMA 23 Stepper Motor 35mm

  • Part Number: 57AI35-284A-24Y
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.8Nm
  • Rated Current/phase: 2.8A
  • Phase Resistance: 0.6ohms
  • Inductance: 1.7mH
  • Driving Voltage: 24-48VDC
  • Frame Size: Φ57mm
  • Body Length: 35mm
  • Shaft Diameter: Φ6.35mm
  • Shaft Length: 21mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 350g
  • Stepper Drive: DM542

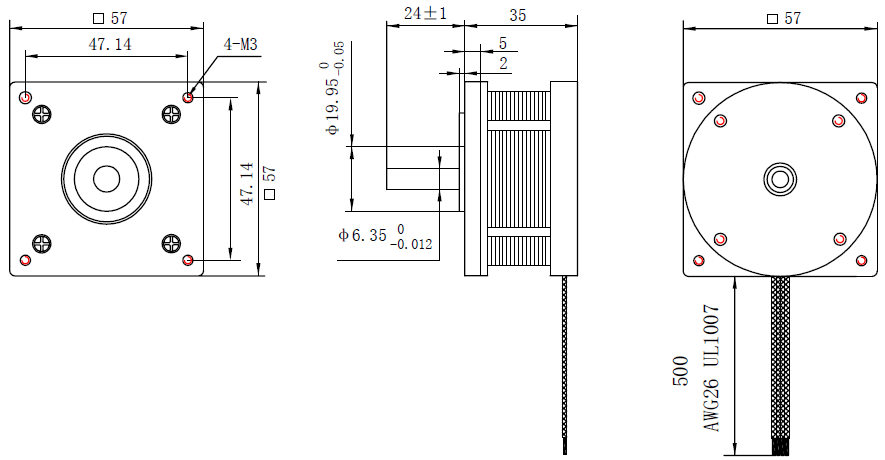

Overall Size

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
