NEMA 14 Closed Loop Stepper Motor 1.0A 0.12Nm with Ultrathin Magnetic Encoder 1000PPR

$39.90

In Stock:

5

Model: 35AI28-1004D-ME1K

Weight: 0.35KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

5 in stock

NEMA 14 Ultrathin Encoder Stepper Motor has a frame size 35x35x28mm , equipped with a 1000PPR ultrathin incremental magnetic encoder, has a rated current of 1.0A and a holding torque of 0.12Nm & high speed upto 3000RPM. It offers higher accuracy, higher output torque, higher speed, lower motor heating, lower power consumption, and faster response to drive controllers compared to open loop stepper motors. A length of 13mm rear shaft is available for special situation uses.

NEMA 14 Ultrathin Encoder Stepper Motor Specification

  • Part Number: 35AI28-1004D-ME1K
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.12Nm
  • Rated Current/phase: 1.0A
  • Driving Voltage: 12-24VDC
  • Insulation Class: B 130°C
  • Frame Size: 35x35mm
  • Body Length: 34.5mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 15mm
  • Encoder Type: Incremental Magnetic
  • Encoder Resolution: 1000PPR

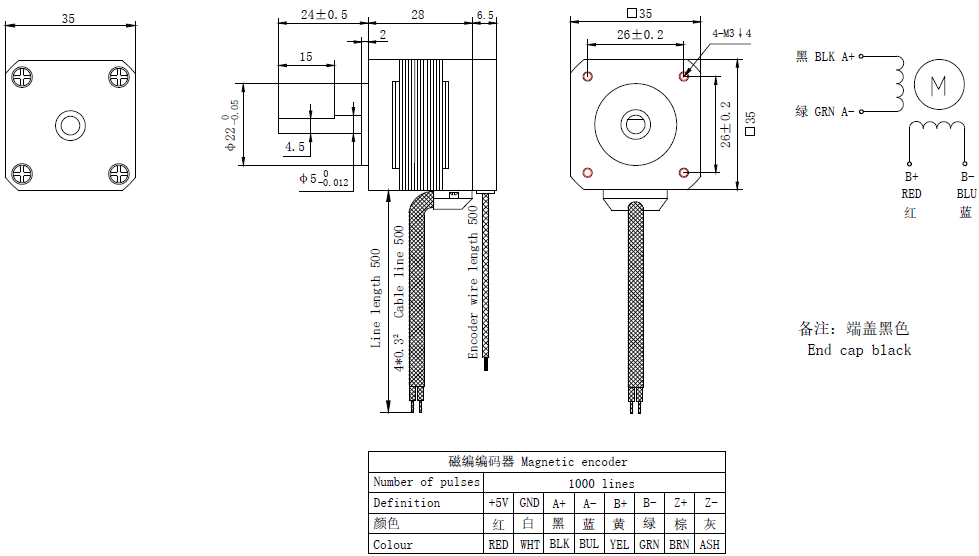

Overall Size

NEMA 14 Ultrathin Encoder Stepper Motor
