Size 42mm NEMA 17 Stepper Motor 0.59Nm with 24V Electromagnetic Brake

Size 42mm NEMA 17 Stepper Motor 0.59Nm with 24V Electromagnetic Brake

$50.00

In Stock:

5

Model: 42AI48-2004YS

Weight: 0.6KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 17 Stepper Motor Electromagnetic Brake: This compact NEMA 17 stepper motor has a frame size 42-48mm, holding torque 0.59nm with rated current 2a, integrated with a 24v electromagnetic brake. The brake will stop the motor shaft rotation in a very short time while the brake’s power-cut occurs. Frankhuai’s brake motors are absolutely an ideal engine for the machines that need frequently stop and run or vertical operation.

NEMA 17 Stepper Motor Electromagnetic Brake Specification

  • Part Number: 42AI48-2004YS
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.55Nm
    Rated Current/phase: 2.0A
    Driving Voltage: 12-24VDC
    Frame Size: 42x42mm
    Body Length: 80mm
    Shaft Diameter: Φ5mm
    Shaft Length: 24mm
    D-cut Length: 20mm
    Brake Type: Electromagnetic
    Brake Voltage: 24VDC

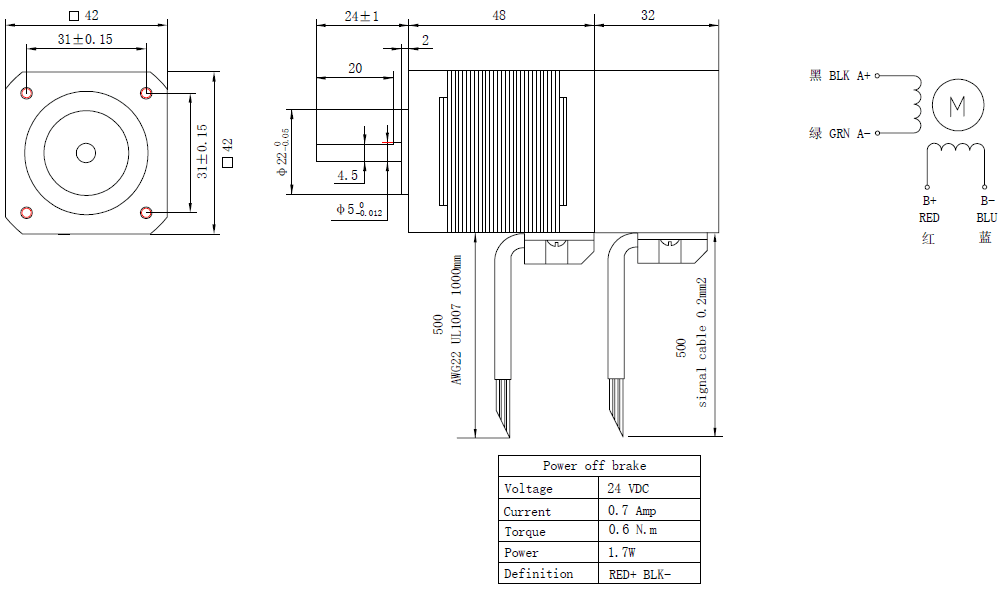

Overall Size

NEMA 17 Stepper Motor Electromagnetic Brake
