Size 42mm NEMA 17 Linear Actuator Stepper Motor Non-captive Type 48mm Stack Lead 3.175mm Length 156mm

Size 42mm NEMA 17 Linear Actuator Stepper Motor Non-captive Type 48mm Stack Lead 3.175mm Length 156mm

$55.00

In Stock:

5

Model: 42AI48-2504N-156ND7

Weight: 0.5KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 17 Precise Linear Actuator Stepper: This size 42mm model is a NEMA 17 Non-captive type lead screw linear actuator stepper motor with a 48mm body length, 1.8 degree step angle and 2.5A rated current. It is integrated with a Φ6.35mm diameter, 156mm lead screw length, the linear travel is 3.175mm per revolution/0.015875mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 17 Precise Linear Actuator Stepper Specification

NEMA 17 Precise Linear Actuator Stepper

  • Part Number: 42AI48-2504N-156ND7
  • Motor Type: Non-captive
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 2.5A
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 48mm
  • Lead Screw Length: 156mm
  • Lead Screw Diameter: Φ6.35mm
  • Lead/Revolution: 3.175mm
  • Lead/Step: 0.015875mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 450g
  • Stepper Drive: FLKH2D1228DC

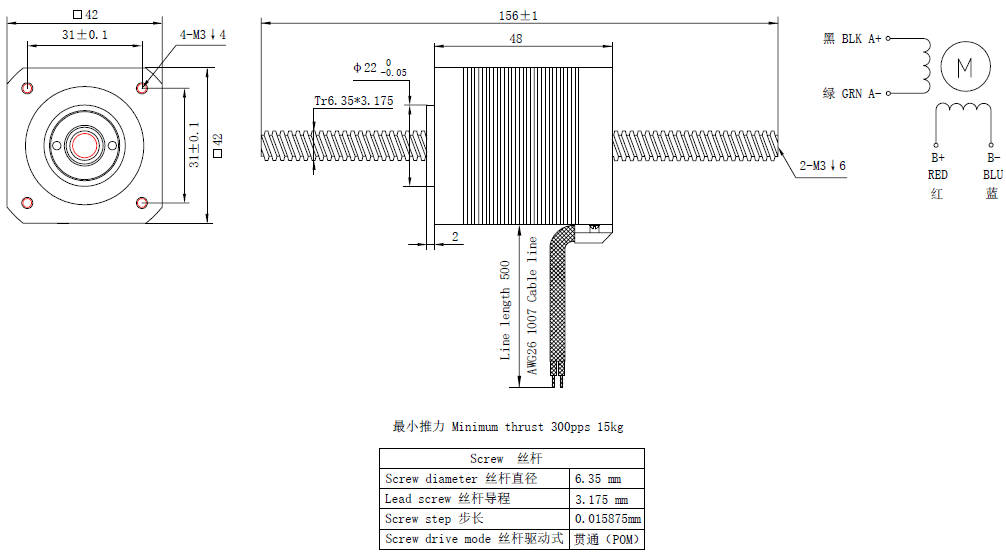

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
