Size 42mm NEMA 17 Hollow Shaft Stepper Motor Dual Shaft 0.46Nm 1.68A 42x48mm

Size 42mm NEMA 17 Hollow Shaft Stepper Motor Dual Shaft 0.46Nm 1.68A 42x48mm

$24.00

In Stock:

5

Model: 42AI48-1684K

Weight: 0.35KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 17 Hollow Shaft Stepper Motor Dual Shaft: This compact size 42mm NEMA 17 hollow shaft stepper motor has a body length 48mm with 1.68A rated current & holding torque 0.46Nm. A hollow shaft with outer diameter Φ10mm & inner diameter Φ6.2mm is available and also a dual shaft with front shaft length 24mm & rear shaft length 10mm is designed.

NEMA 17 Hollow Shaft Stepper Motor Dual Shaft Specification

NEMA 17 Hollow Shaft Stepper Motor Dual Shaft

  • Part Number: 42AI48-1684K
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.46Nm
    Rated Current/phase: 1.68A
    Driving Voltage: 12-24VDC
    Frame Size: 42x42mm
    Body Length: 48mm
    Shaft Type: Hollow Shaft
    Inner Diameter: Φ6.2mm
    Outer Diameter: Φ10mm
    Front Shaft Length: 24mm
    Rear Shaft Length: 10mm
    Number of Leads: 4
    Lead Length: 500mm
    Weight: 350g
  • Stepper Drive: FLKH2D1228DC

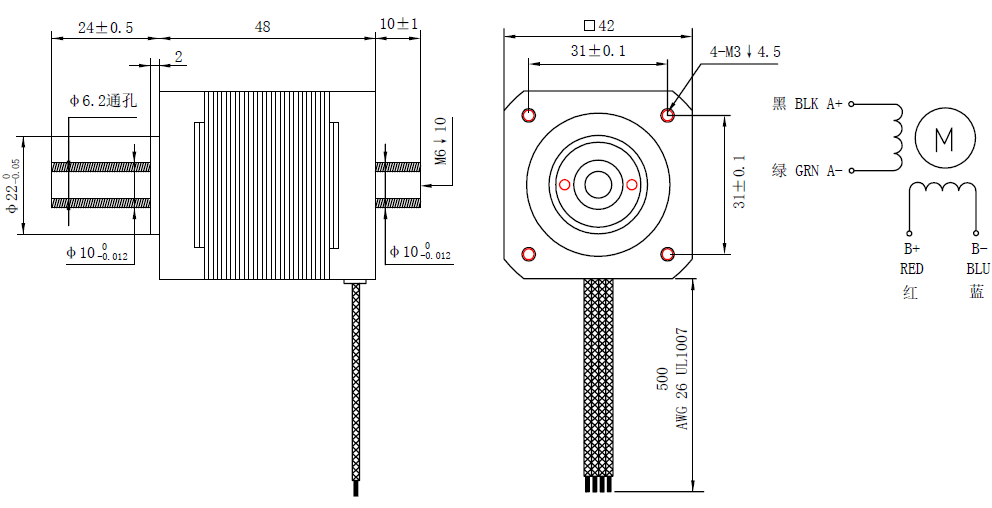

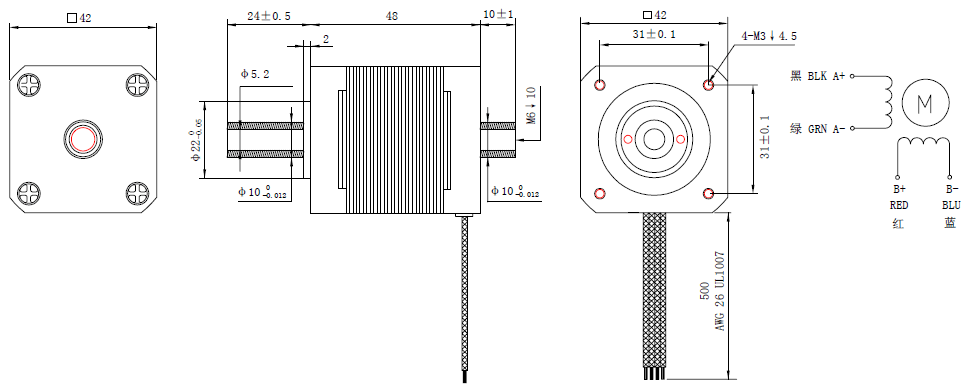

Overall Size

If you need a PDF data sheet, please feel free to email: info@frankhumotor.com.
