Size 42mm NEMA 17 Hollow Shaft Stepper Motor M8 Thread 0.55Nm 1.68A 42x48mm

Size 42mm NEMA 17 Hollow Shaft Stepper Motor M8 Thread 0.55Nm 1.68A 42x48mm

$25.00

In Stock:

5

Model: 42AI48-1684M

Weight: 0.35KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 17 Hollow Shaft M8 Thread: This compact size 42mm NEMA 17 hollow shaft stepper motor has a body length 48mm with 1.68A rated current & holding torque 0.55Nm. A hollow shaft with outer diameter Φ8mm & inner diameter Φ4.2mm is available and also a dual shaft with front shaft length 22mm & rear shaft length 13mm with M8 thread is designed.

NEMA 17 Hollow Shaft M8 Thread Specification

  • Part Number: 42AI48-1684M
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.55Nm
    Rated Current/phase: 1.68A
    Driving Voltage: 12-24VDC
    Frame Size: 42x42mm
    Body Length: 48mm
    Shaft Type: Hollow Shaft
    Inner Diameter: Φ4.2mm
    Outer Diameter: Φ8mm
    Front Shaft Length: 22mm
    Rear Shaft Length: 13mm with M8 thread
    Number of Leads: 4
    Lead Length: 1000mm
    Weight: 350g

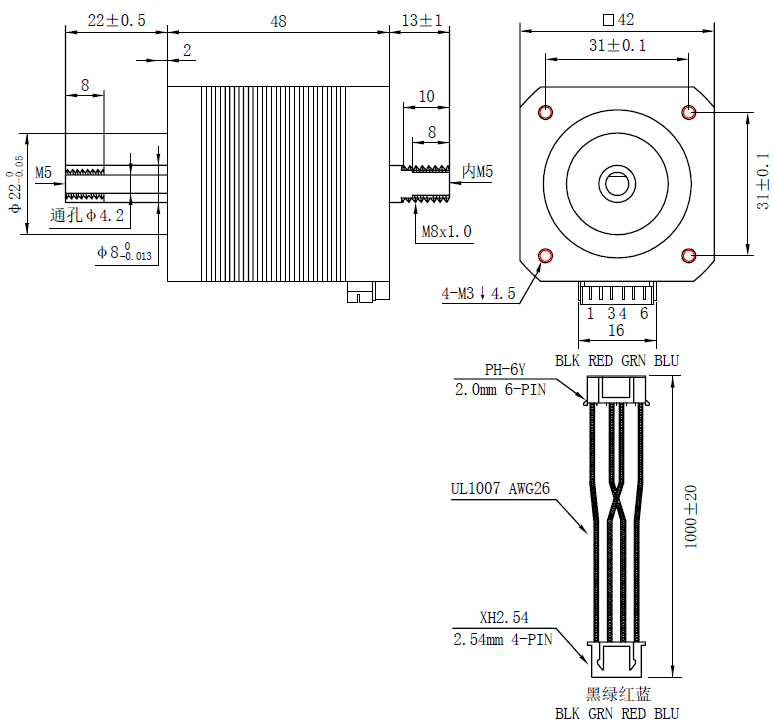

Overall Size

NEMA 17 Hollow Shaft M8 Thread
