Size 28mm NEMA 11 Linear Actuator Stepper Motor Captive Type 44mm Stack Lead 5.08mm Travel 25.4mm

Size 28mm NEMA 11 Linear Actuator Stepper Motor Captive Type 44mm Stack Lead 5.08mm Travel 25.4mm

$85.00

In Stock:

5

Model: 28AI44-1004C-2540

Weight: 0.35KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 11 Linear Actuator Captive Double Stack: This size 28mm model is a NEMA 11 Captive type screw linear actuator stepper motor with a 44mm body length, 1.8 degree step angle and 1.0A rated current. It is integrated with a Φ4.76mm diameter, 25.4mm stroke length, the linear travel is 5.08mm per revolution/0.0254mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

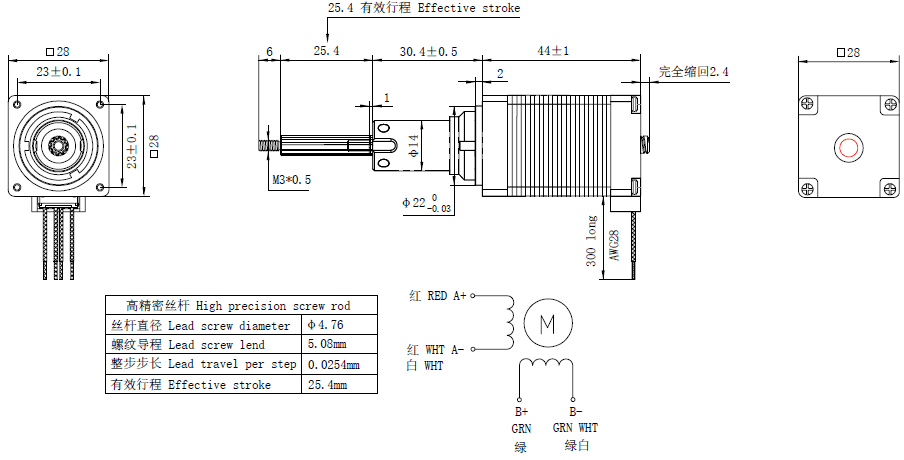

NEMA 11 Linear Actuator Captive Double Stack SpecificationNEMA 11 Linear Actuator Captive Double Stack

  • Part Number: 28AI44-1004C-2540
  • Motor Type: Captive
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 1.0A
  • Driving Voltage: 12-24VDC
  • Frame Size: 28x28mm
  • Body Length: 44mm
  • Travel Distance: 25.4mm
  • Lead Screw Diameter: Φ4.76mm
  • Lead/Revolution: 5.08mm
  • Lead/Step: 0.0254mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 300g
  • Stepper Drive: FLKH2D1228DC

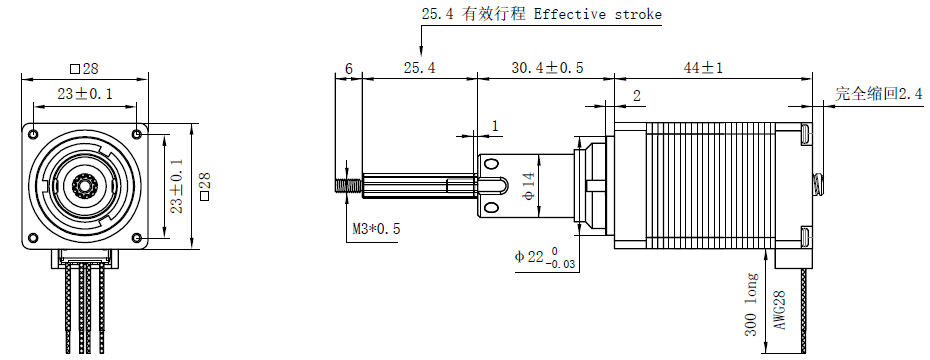

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
