Size 35mm NEMA 14 Closed-loop High Precision Planetary Gearbox Stepper Motor with 1000CPR Encoder

Size 35mm NEMA 14 Closed-loop High Precision Planetary Gearbox Stepper Motor with 1000CPR Encoder

$100.00 – $115.00

In Stock:

10

Model: 35AI34EC-HGXX

Weight: 0.45KG

Certificated: ISO, CE, RoHS

Ships From China

NEMA 14 Closed loop stepper motor with gearbox: This geared closed-loop stepper motor has a frame size 35-34mm with rated current 1.95a, integrated with a HG series high precision planetary gearbox & a 1000cpr resolution incremental optical encoder. It is an an ideal choice for the applications that require high torque or low speed but high precision motion control and positioning feedback.

NEMA 14 Closed loop stepper motor with gearbox Specification

NEMA 14 Closed loop stepper motor with gearbox

  • Part Number: 35AI34EC-HGXX
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 0.18Nm w/o gearbox
  • Rated Current/phase: 1.95A
  • Frame Size: 35x35mm
  • Motor Length: 34mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Encoder Type: Incremental Optical
  • Encoder Resolution: 1000CPR
  • Gearbox Type: Planetary
  • Gear Ratio: 4-70:1
  • Efficiency: 96%-94%
  • Backlash at No-load: 12arcmin-15arcmin
  • Gearbox Length: 38mm-44.5mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Stepper Drive: CL42C

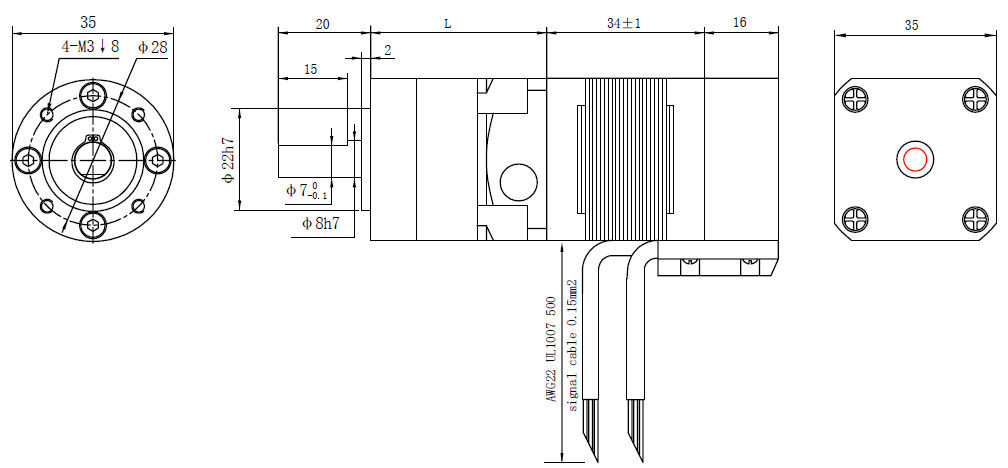

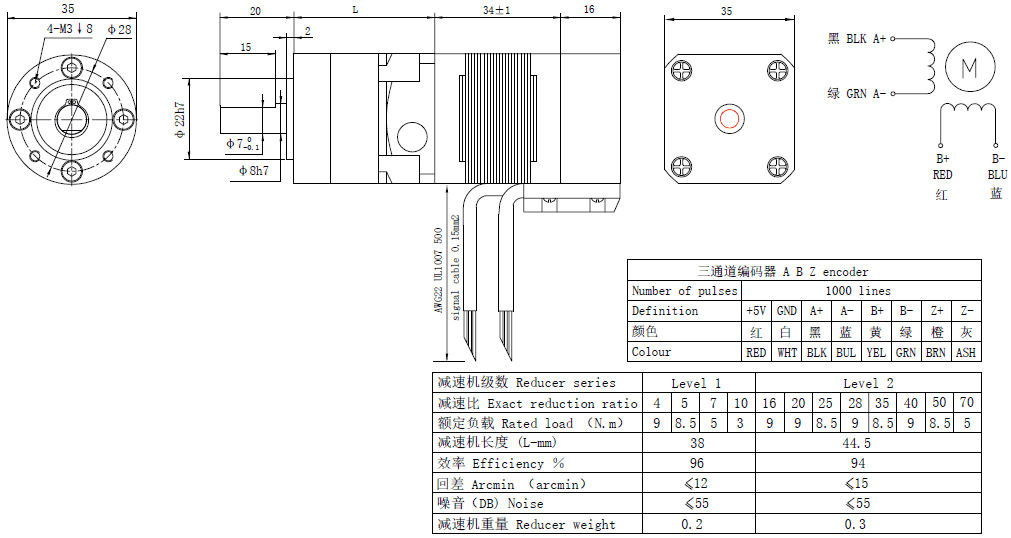

Overall Size

Gearbox Length(L)=38mm for ratio 5/1, 10/1; 44.5mm for ratio 20/1, 50/1, 70/1.

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
