NEMA 11 Stepper Motor Long Axis 28-32mm 0.07Nm 1A

NEMA 11 Stepper Motor Long Axis Bipolar 1.8deg 0.07Nm 1A 28x32mm 4 Wires

$15.00

In Stock:

5

Model: 28AI32-1004S-57B

Weight: 0.2KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 11 Stepper Motor Long Axis:  This size 28mm hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and body length 32mm with a super long axis 56.5mm. Each phase draws current 1.0A, allowing for a holding torque of 0.07Nm. Compared to traditional stepper motor, this long shaft stepper motor doesn’t have a protruding part.

NEMA 11 Stepper Motor Long Axis SpecificationNEMA 11 Stepper Motor Long Axis

  • Part Number: 28AI32-1004S-57B
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.07Nm
  • Rated Current/phase: 1.0A
  • Phase Resistance: 2.1ohms
  • Inductance: 1.5mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 28x28mm
  • Body Length: 32mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 57.5mm
  • D-cut Length: 51mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 110g
  • Stepper Drive: FLKH2D1228DC

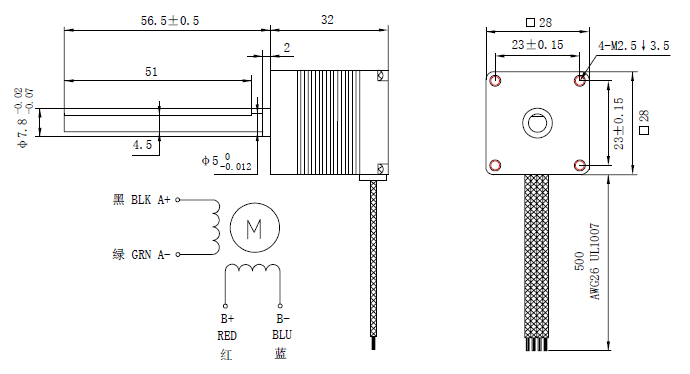

Overall Size

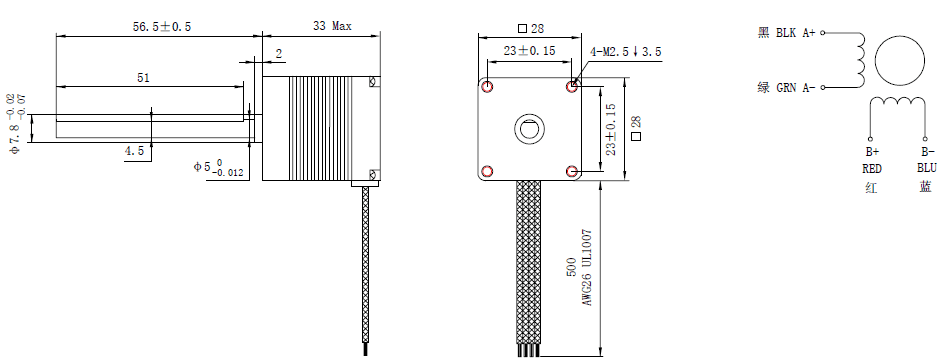

28AI32-1004S-57B Datasheet

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
