Size 28mm NEMA 11 Linear Actuator Stepper Motor External Type 32mm Stack Lead 2.54mm Length 150mm

Size 28mm NEMA 11 Linear Actuator Stepper Motor External Type 32mm Stack Lead 2.54mm Length 150mm

$40.00

In Stock:

5

Model: 28AI32-1004E-150NB3

Weight: 0.25KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 11 Linear Stepper Motor Lead 2-54mm: This size 28mm model is a NEMA 11 External type lead screw linear actuator stepper motor with a 32mm body length, 1.8 degree step angle and 1.0A rated current. It is integrated with a Φ4.76mm diameter, 150mm lead screw length and a POM screw nut, the linear travel is 2.54mm per revolution/0.0127mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 11 Linear Stepper Motor Lead 2-54mm Specification

NEMA 11 Linear Stepper Motor Lead 2-54mm

  • Part Number: 28AI32-1004E-150NB3
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 1.0A
  • Driving Voltage: 12-24VDC
  • Frame Size: 28x28mm
  • Body Length: 32mm
  • Lead Screw Length: 150mm
  • Lead Screw Diameter: Φ4.76mm
  • Lead/Revolution: 2.54mm
  • Lead/Step: 0.0127mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 150g
  • Stepper Drive: FLKH2D1228DC

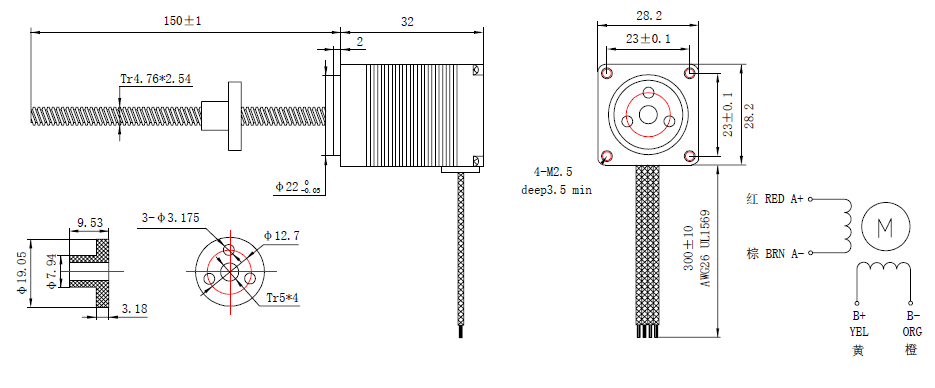

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
