NEMA 11 Hollow Shaft Stepper Motor 0.07Nm 1A 28x32mm

Size 28mm NEMA 11 Hollow Shaft Stepper Motor 0.07Nm 1A 28x32mm

$22.00

In Stock:

5

Model: 28AI32-1004S-12K1

Weight: 0.2KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

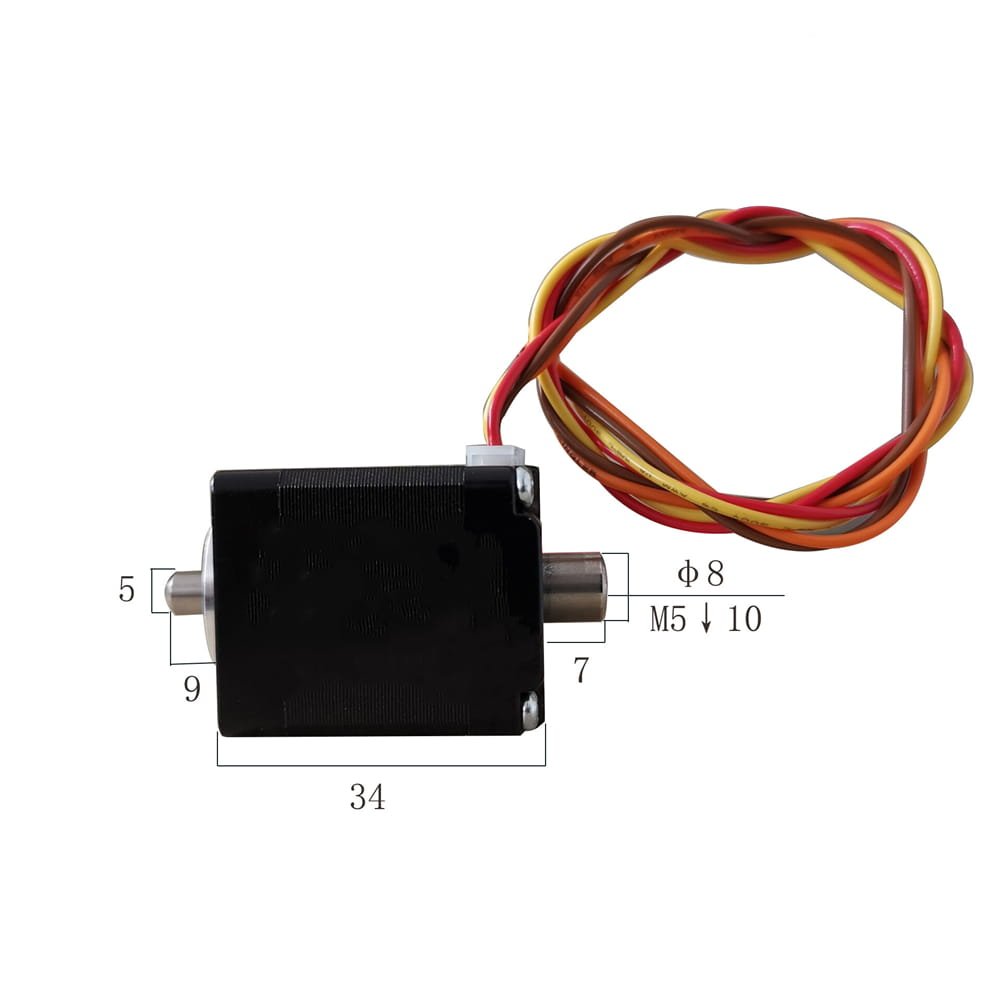

NEMA 11 Hollow Shaft Motor 32mm: This small size 28mm NEMA 11 stepper motor has a body length 32mm with 1.0A rated current & holding torque 0.07Nm. A hollow shaft with outer diameter Φ8mm & inner diameter Φ6mm is available.

NEMA 11 Hollow Shaft Motor 32mm SpecificationNEMA 11 Hollow Shaft Motor 32mm

  • Part Number: 28AI32-1004S-12K1
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.07Nm
    Rated Current/phase: 1.0A
    Driving Voltage: 12-24VDC
    Frame Size: 28x28mm
    Body Length: 32mm
    Shaft Type: Hollow Shaft
    Inner Diameter: Φ6mm
    Outer Diameter: Φ8mm
    Shaft Length: 12mm
    Number of Leads: 4
    Lead Length: 500mm
    Weight: 100g
  • Stepper Drive: FLKH2D1228DC

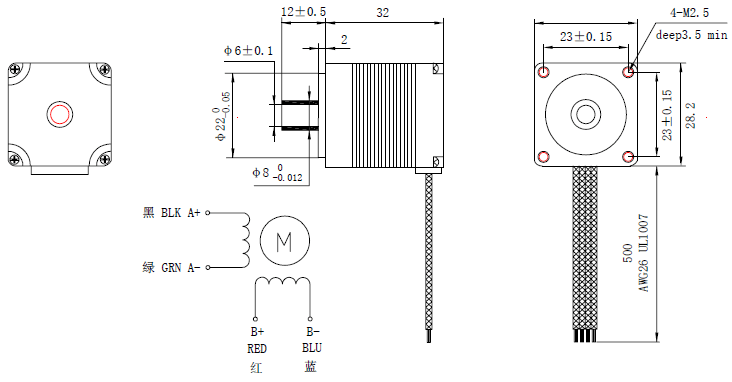

Overall Size

28AI32-1004S-12K1 Datasheet

If you need a PDF data sheet, please feel free to email: info@frankhumotor.com.
