NEMA 11 Hollow Shaft Stepper Motor Dual Shaft 0.075Nm 1A 28x33.5mm wtih Harness Cable

Size 28mm NEMA 11 Hollow Shaft Stepper Motor Dual Shaft 0.075Nm 1A 28x34mm with Harness Cable

$25.00

In Stock:

5

Model: 28AI34-1004K

Weight: 0.25KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

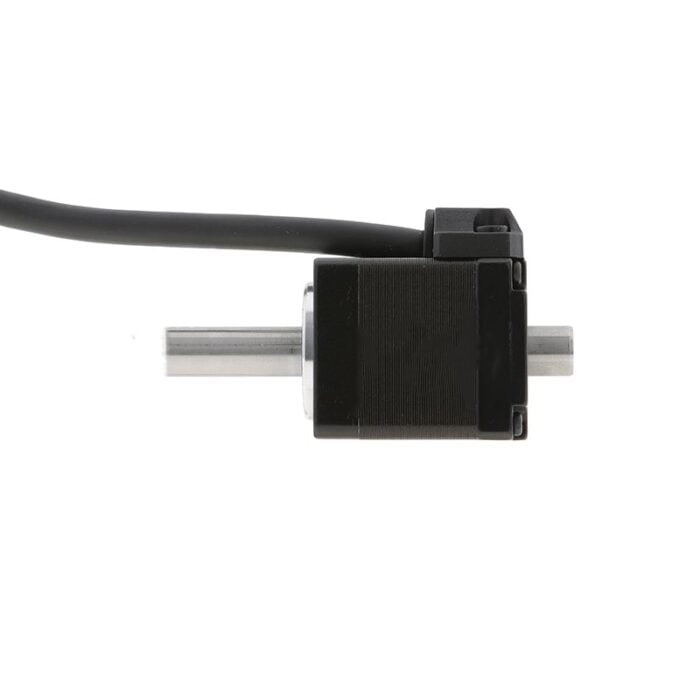

NEMA 11 Hollow Shaft Stepper Motor Dual Shaft: This small size 28mm NEMA 11 hollow shaft stepper motor has a body length 34mm with 1.0A rated current & holding torque 0.075Nm. A hollow shaft with outer diameter Φ8mm & inner diameter Φ4.2mm is available and also a double shaft with the front shaft length 14mm and rear shaft length 7mm is designed.

NEMA 11 Hollow Shaft Stepper Motor Dual Shaft Specification

NEMA 11 Hollow Shaft Stepper Motor Dual Shaft

  • Part Number: 28AI34-1004K
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.075Nm
    Rated Current/phase: 1.0A
    Driving Voltage: 12-24VDC
    Frame Size: 28x28mm
    Body Length: 33.5mm
    Shaft Type: Hollow Shaft
    Inner Diameter: Φ4.2mm
    Outer Diameter: Φ8.0mm
    Front Shaft Length: 14mm
    Rear Shaft Length: 7mm
    Number of Leads: 4
    Lead Length: 1000mm
    Weight: 200g
  • Stepper Drive: FLKH2D1228DC

Overall Size

If you need a PDF data sheet, please feel free to email: info@frankhumotor.com.
