Size 28mm NEMA 11 Hollow Shaft Stepper Motor Long Axis 0.07Nm 1A 28x33mm

Size 28mm NEMA 11 Hollow Shaft Stepper Motor Long Axis 0.07Nm 1A 28x33mm

$23.50

In Stock:

5

Model: 28AI33-1004Q

Weight: 0.2KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 11 Hollow Shaft Long Axis: This small size 28mm NEMA 11 hollow shaft stepper motor has a body length 33mm with 1.0A rated current & holding torque 0.07Nm. A hollow shaft with outer diameter Φ8mm & inner diameter Φ4.2mm is available and also a double shaft with super long front shaft length 31mm and rear shaft length 7mm is designed.

NEMA 11 Hollow Shaft Long Axis Specification

  • Part Number: 28AI33-1004Q
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.07Nm
    Rated Current/phase: 1.0A
    Driving Voltage: 12-24VDC
    Frame Size: 28x28mm
    Body Length: 33mm
    Shaft Type: Hollow Shaft
    Inner Diameter: Φ4.2mm
    Outer Diameter: Φ8.0mm
    Front Shaft Length: 31mm
    Rear Shaft Length: 7mm
    Number of Leads: 4
    Lead Length: 500mm
    Weight: 100g

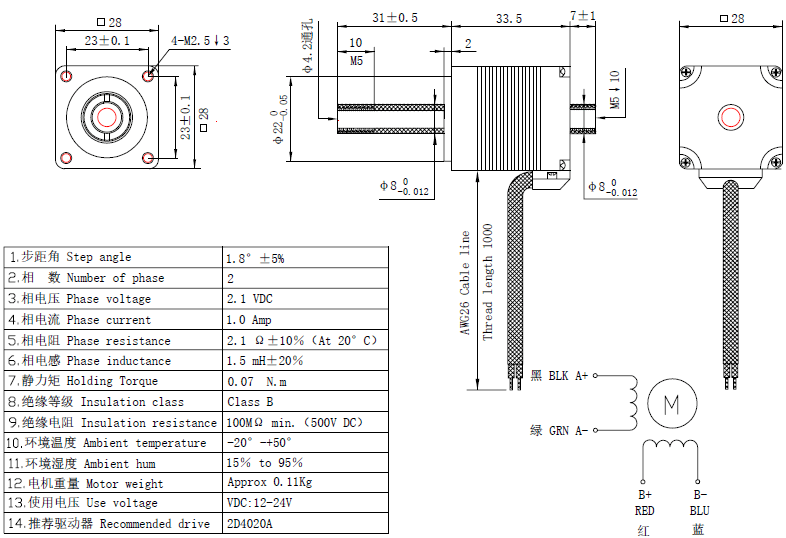

Overall Size

NEMA 11 Hollow Shaft Long Axis
