Size 28mm NEMA 11 L=32mm Short Body High Precision Planetary Gearbox Stepper Motor

Size 28mm NEMA 11 L=32mm Short Body High Precision Planetary Gearbox Stepper Motor

Price range: $80.00 through $95.00

In Stock:

10

Model: 28AI32-1004S-PLEXX

Weight: 0.3KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

NEMA 11 High Precision Geared Stepper 32mm: This frame size 28mm NEMA 11 gearbox reduction stepper motor has 32mm body and 1.0A rated current, integrated with one high precision & short length planetary gearbox. It’s a good solution to the applications that require limited space but low speed and high torque.

NEMA 11 High Precision Geared Stepper 32mm Specification

  • Part Number: 28AI32-1004S-PLE
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 0.07Nm w/o gearbox
  • Rated Current/phase: 1.0A
  • Frame Size: 28x28mm
  • Motor Length: 32mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Gearbox Type: Planetary
  • Gear Ratio: 4-200:1
  • Efficiency: 96%-90%
  • Backlash at No-load: 15arcmin-25arcmin
  • Gearbox Length: 21.7mm-38.7mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm

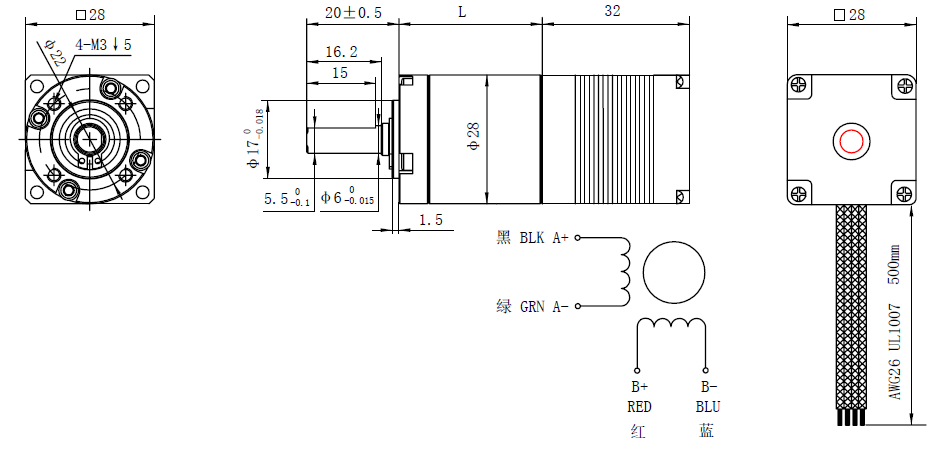

Overall Size

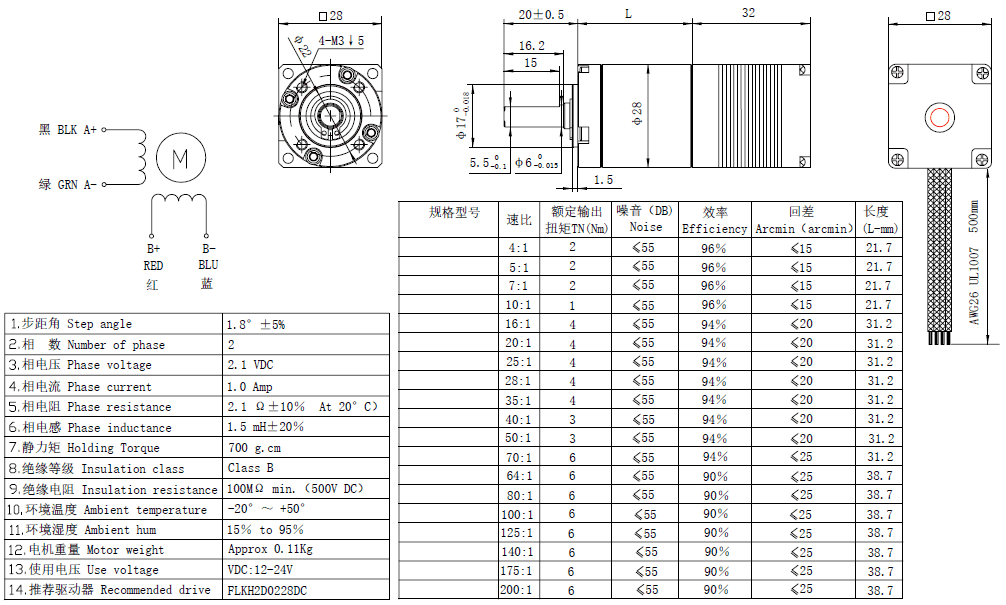

NEMA 11 High Precision Geared Stepper 32mm
