Size 28mm NEMA 11 Geared Stepper Motor with Reduction Ratio 10:1 Planetary Gearbox & 24V Brake

$99.00

In Stock:

10

Model: 28AI33-1004S-KGS10-YS

Weight: 0.55KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 11 Geared Stepper Motor with Brake: This small geared stepper motor has a frame size 28x28mm with rated current 1.0A, integrated with high precision planetary gearbox of gear ratio 10:1 & 24V DC electromagnetic brake. It is an an ideal choice for the applications that require high torque or low speed and positioning & speed feedback

NEMA 11 Geared Stepper Motor with Brake Specification

  • Part Number: 28AI33-1004S-KGS10-YS
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 0.12Nm w/o gearbox
  • Rated Current/phase: 0.67A
  • Frame Size: 28x28mm
  • Motor Length: 51mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Brake Type: Electromagnetic
  • Brake Voltage: 24VDC
  • Gearbox Type: Planetary
  • Gear Ratio: 10:1
  • Efficiency: 96%
  • Backlash at No-load: 15arcmin
  • Gearbox Length(L): 33mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm

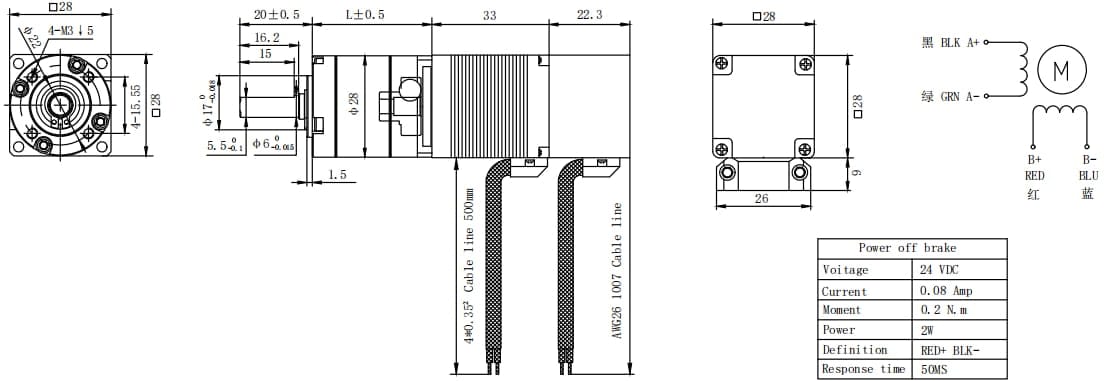

Overall Size

NEMA 11 Geared Stepper Motor with Brake
