Size 28mm NEMA 11 Stepper Motor 0.12Nm with 24V Electromagnetic Brake

Size 28mm NEMA 11 Stepper Motor 0.12Nm with 24V Electromagnetic Brake

$50.00

In Stock:

10

Model: 28AI52-1004YS

Weight: 0.5KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 11 Electromagnetic Brake Motor: This small NEMA 11 stepper motor has a frame size 28-52mm, holding torque 0.07nm with rated current 1a, integrated with a 24v electromagnetic brake. The brake will stop the motor shaft rotation in a very short time while the brake’s power-cut occurs. Frankhuai’s brake motors are absolutely an ideal engine for the machines that need frequently stop and run or vertical operation.

NEMA 11 Electromagnetic Brake Motor Specification

  • Part Number: 28AI52-1004YS
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.12Nm
    Rated Current/phase: 1.0A
    Driving Voltage: 12-24VDC
    Frame Size: 28x28mm
    Body Length: 74.3mm
    Shaft Diameter: Φ5mm
    Shaft Length: 20mm
    D-cut Length: 15mm
    Brake Type: Electromagnetic
    Brake Voltage: 24VDC

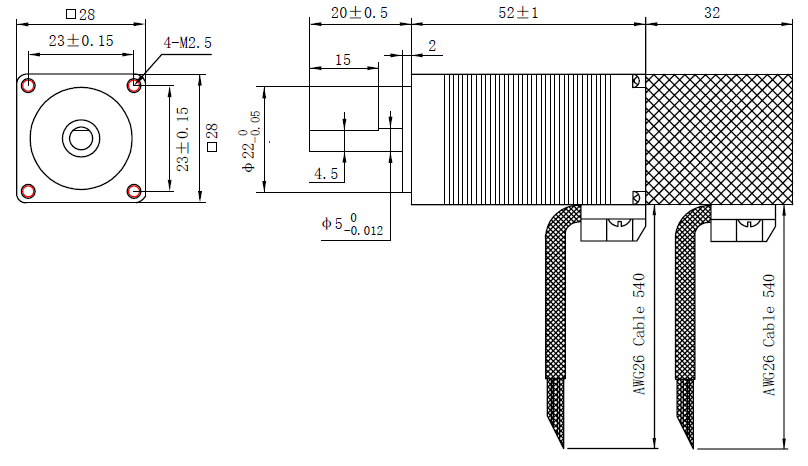

Overall Size

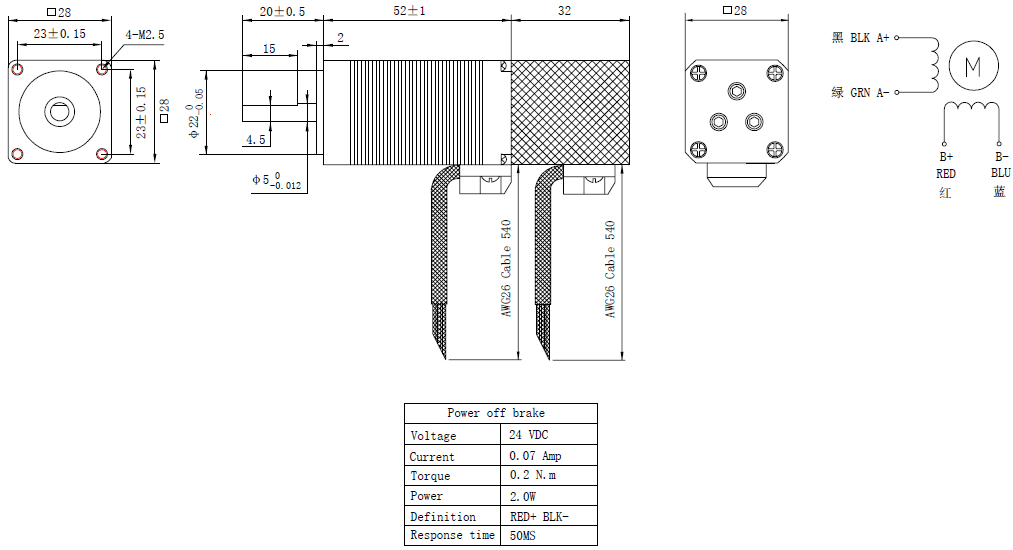

NEMA 11 Electromagnetic Brake Motor
