Size 35mm NEMA 14 Closed-loop Stepper Servo Motor 0.4Nm with 1000CPR Encoder

Size 35mm NEMA 14 Closed-loop Stepper Servo Motor 0.4Nm with 1000CPR Encoder

$55.00

In Stock:

5

Model: 35AI52EC-1000

Weight: 0.5KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock

High torque NEMA 14 closed-loop stepper motor has size 35-52mm, equipped with a 1000cpr incremental optical encoder, has a rated current of 1.95 A and a holding torque of 0.4Nm. It offers higher accuracy, higher output torque, higher speed, lower motor heating, lower power consumption, and faster response to drive controllers compared to open loop stepper motors.

Recommend drive: Leadshine CL42C Closed-Loop Stepper Motor Drive

High torque NEMA 14 closed-loop stepper motor Specification

High torque NEMA 14 closed-loop stepper motor

  • Part Number: 35AI52EC-1000
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.4Nm
    Rated Current/phase: 1.95A
    Driving Voltage: 12-24VDC
    Frame Size: 35x35mm
    Body Length: 68mm
    Shaft Diameter: Φ5mm
    Shaft Length: 24mm
    D-cut Length: 15mm
    Encoder Type: Incremental Optical
    Encoder Resolution: 1000CPR

A small tip:

A closed-loop stepper motor is a type of stepper motor that incorporates an encoder to achieve higher precision and performance compared to a traditional open-loop stepper motor.

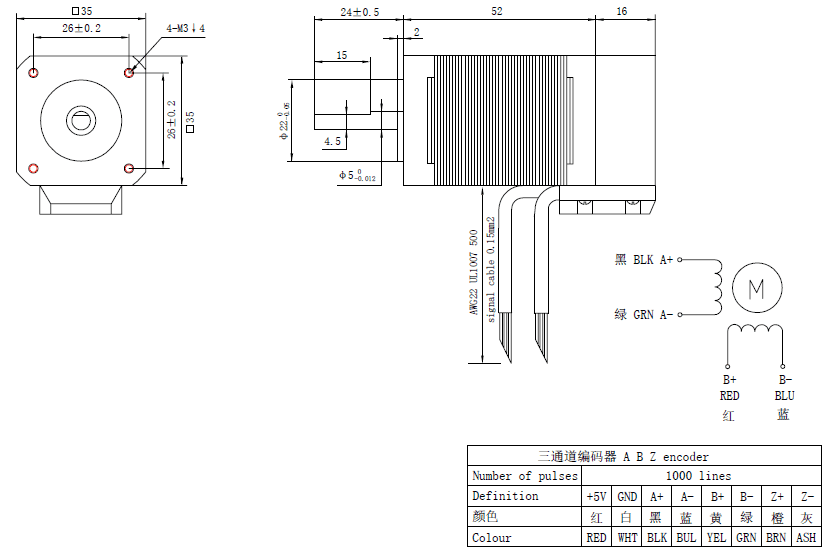

Overall Size

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)
Encoder 8 Leads Connection: A+(Black), A-(Blue); B+(Yellow), B-(Green), Z+(Brown), Z-(Grey), 5V(Red), GND((White)
If your drive controller don’t support Z signal, then you can leave Z unconnected.

If you need a PDF data sheet, please send an email to: info@frankhumotor.com!
