Size 42mm NEMA 17 Closed-loop Stepper Servo Motor Dual Shaft 2.1A 0.75Nm with 1000PPR Encoder & Rear Shaft

Size 42mm NEMA 17 Closed-loop Stepper Servo Motor Dual Shaft 2.1A 0.75Nm with 1000PPR Encoder & Rear Shaft

$30.00

In Stock:

20

Model: 42AI60EC-1000B

Weight: 0.8KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

20 in stock (can be backordered)

Dual shaft NEMA 17 closed loop stepper motor has a size 42x42mm, equipped with a 1000PPR incremental optical encoder, has a rated current of 2.1A and a holding torque of 0.75Nm & high speed upto 3000RPM and a length of 15mm rear shaft. It offers higher accuracy, higher output torque, higher speed, lower motor heating, lower power consumption, and faster response to drive controllers compared to open loop stepper motors.

Dual shaft NEMA 17 closed loop stepper motor Specification

  • Part Number: 42AI60EC-1000B
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.7Nm
  • Rated Current/phase: 2.1A
  • Driving Voltage: 12-24VDC
  • Insulation Class: B 130°C
  • Frame Size: 42x42mm
  • Body Length: 80mm
  • Front Shaft Diameter: Φ5mm
  • Front Shaft Length: 24mm
  • D-cut Length: 20mm
  • Rear Shaft Diameter: Φ5mm
  • Rear Shaft Length: 15mm
  • D-cut Length: 14mm
  • Encoder Type: Incremental Optical
  • Encoder Resolution: 1000PPR

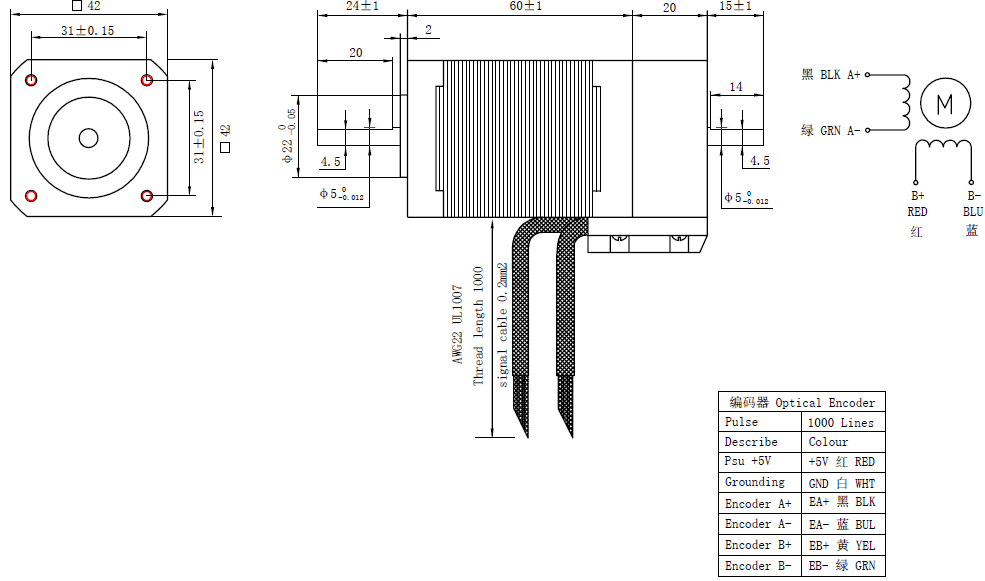

Overall Size

Dual shaft NEMA 17 closed loop stepper motor
