stepper-motor-drive-dm430-0-14-3-a-12-30vdc

Digital Stepper Drive DM430 0.14-3.0A 12-30VDC for NEMA 6, 8, 11, 14, 16, 17 Stepper Motor

$30.00

In Stock:

10

Model: DM430

Weight: 0.2KG

Certificated: CE, RoHS

Brand: OKD Drive

Ships From China

10 in stock

The Stepper Motor Drive DM430 is a fully digital stepper driver developed with advanced DSP control algorithm based on the latest motion control technology. It provides an input voltage 12-30VDC and output current 0.14-3.0A. This motor drive controller DM430 is definitely capable of powering 2 phase Stepper Motors of NEMA 6, 8, 11, 14, 16 and 17.

Stepper Motor Drive DM430 Specifications

  • Manufacturer Part Number: DM430
  • Logic Input Voltage: 5V/24V
  • Output Current: 0.14-3.0A(2.1RMS)
  • Input Voltage: 12-30VDC
  • Microsteps: 200-20000
  • Pulse Input Frequency: 0-200kHz
  • Drive Mode: Pulse+Direction
  • Cooling: Natural cooling or forced cooling
  • Ambient Temperature: 0℃-50℃
  • Humidity: 40%RH-90%RH
  • Operating Temperature: 0℃-50℃
  • Storage Temperature: -20℃-65℃
  • Dimension: 96x59x21mm
  • Weight: 0.2kg

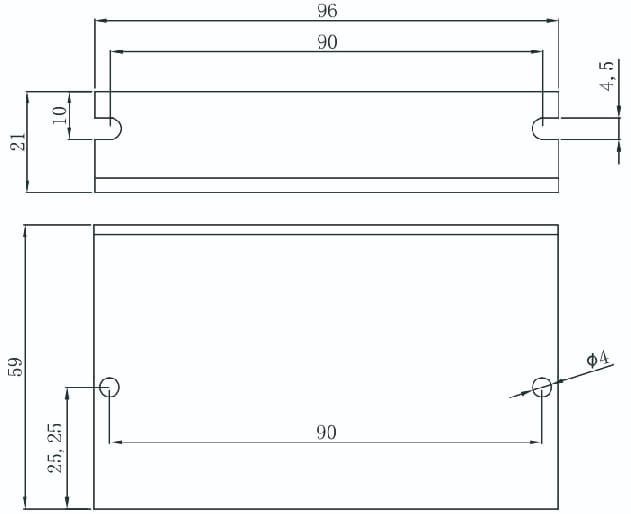

Overall Size

Stepper Motor Drive DM430
