36v-brushless-dc-motor-drive-controller-bld-300

Brushless DC Motor Drive Controller BLD-300B 12V-56VDC Max 15A 300W

$32.00

In Stock:

10

Model: BLD-300

Weight: 0.8KG

Certificated: CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock

This 36V brushless dc motor drive controller BLD-300B is designed by Frankhuai and mainly for 24V/36V/48V brushless dc motor power less than 300W. This BLDC Motor controller works with the field of modern industrial automatic control and adopts PWM technology. Modbus RS485 can be customized.

36V Brushless DC Motor Drive Key Features:

  • Manufacturer Part Number: BLD-300B
  • Open/closed loop control
  • Max output current P-sv setting
  • Impulse frequency speed adjusting
  • External analog signal speed control
  • External potentiometer speed control
  • Suitable for BLDC Motor below 300W
  • Built in potentiometer RV speed control
  • Input voltage VDC 12-56, typical BLDC motor controller 36V/48

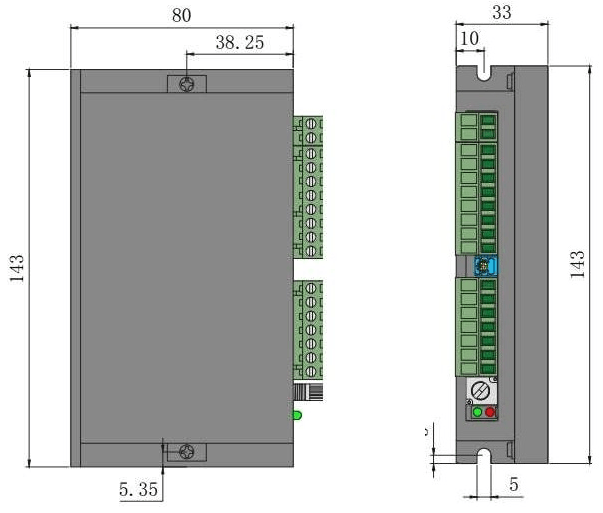

Overall Size

36V Brushless DC Motor Drive

Reviews

There are no reviews yet.

Be the first to review “Brushless DC Motor Drive Controller BLD-300B 12V-56VDC Max 15A 300W”

Your email address will not be published. Required fields are marked *

Tag: 12v bldc drive, 220v bldc drive, 24v bldc drive, 36v bldc drive, 48v bldc drive, high power bldc drive
