24v-brushless-dc-motor-drive-controller-bld-120a

Brushless DC Motor Drive Controller BLD-120A 12V-30VDC Max 8.0A 120W

$32.00

In Stock:

10

Model: BLD-120A

Weight: 0.4KG

Certificated: CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock

This 24V brushless dc motor drive controller BLD-120A is designed by Frankhuai and mainly for 12V/24V brushless dc motor power less than 120W. This BLDC Motor controller works with the field of modern industrial automatic control and adopts PWM technology. Modbus RS485 can be customized.

24V Brushless DC Motor Drive Key Features:

  • Manufacturer Part Number: BLD-120A
  • Open/closed loop control
  • Max output current P-sv setting
  • Impulse frequency speed adjusting
  • External analog signal speed control
  • External potentiometer speed control
  • Suitable for BLDC Motor below 120W
  • Built in potentiometer RV speed control
  • Input voltage VDC 12-24, typical BLDC motor controller 24V

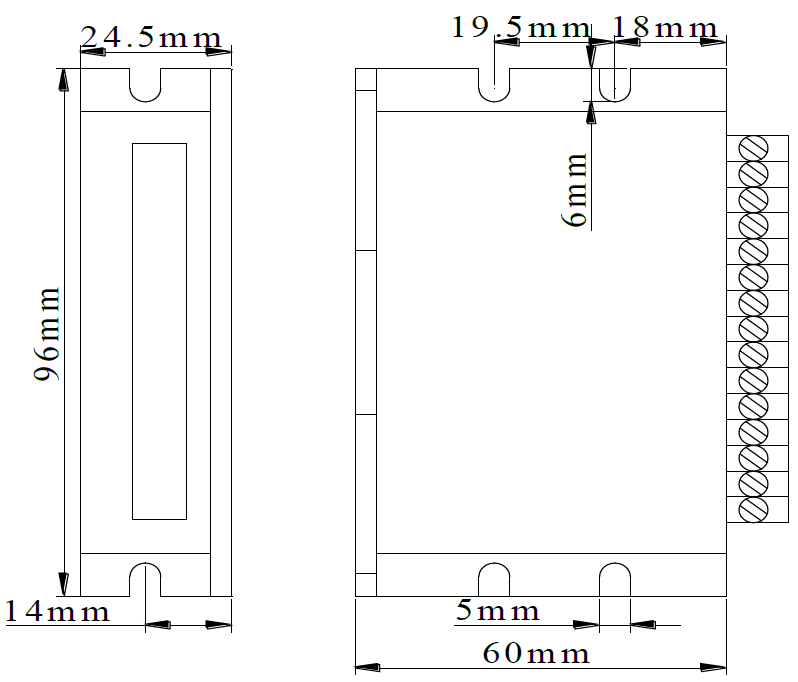

Overall Size

24V Brushless DC Motor Drive
