Size 57mm NEMA 23 Linear Actuator Stepper Motor Non-captive 76mm Stack Lead 4mm/10mm/20mm Length 300mm

Size 57mm NEMA 23 Linear Actuator Stepper Motor Non-captive 76mm Stack Lead 4mm/10mm/20mm Length 300mm

$60.00

In Stock:

20

Model: 57LS76-4204N-300N

Weight: 1.2KG

Certificated: ISO, CE, RoHS

Ships From China

NEMA 23 Lead Screw Stepper Motor High Speed: This size 57mm model is a NEMA 23 Non-captive type lead screw linear actuator stepper motor with a 76mm body length, 1.8 degree step angle and 4.2A rated current. It is integrated with a Φ10mm diameter, 300mm lead screw length, the linear travel is 4mm per revolution/0.02mm per step, 10mm per revolution/0.05mm per step, 20mm per revolution/0.1mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

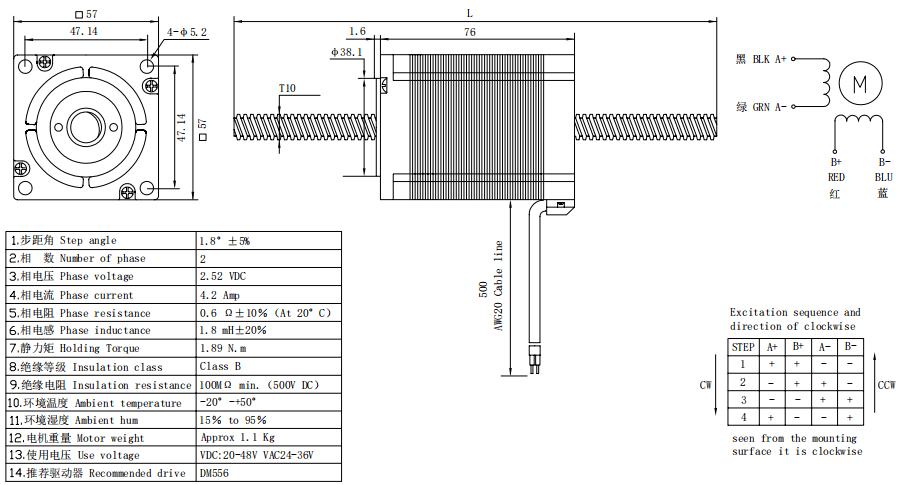

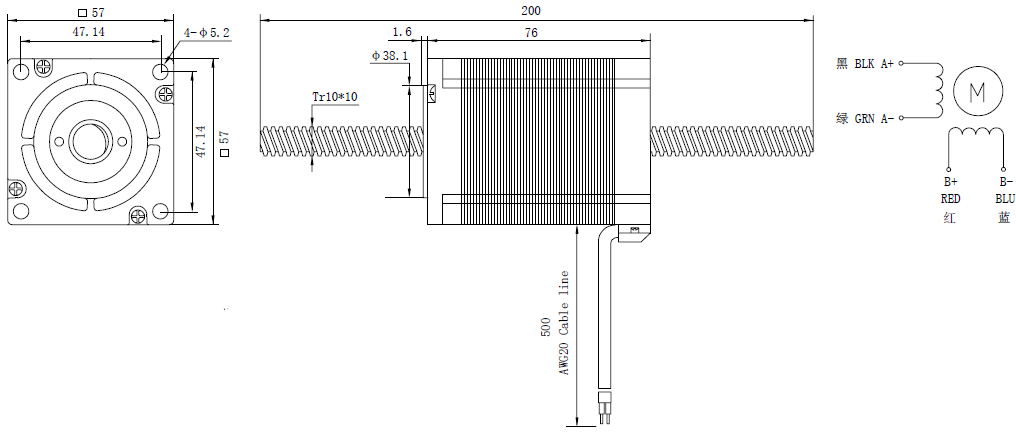

NEMA 23 Lead Screw Stepper Motor High Speed Specification

NEMA 23 Lead Screw Stepper Motor High Speed

  • Part Number: 57AI76-4204N-300N
  • Motor Type: Non-captive
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 4.2A
  • Driving Voltage: 24-48VDC
  • Frame Size: 57x57mm
  • Body Length: 76mm
  • Lead Length: 300mm
  • Lead Screw Diameter: Φ10mm
  • Lead/Revolution: 4mm
  • Lead/Step: 0.02mm
  • Lead/Revolution: 10mm
  • Lead/Step: 0.05mm
  • Lead/Revolution: 20mm
  • Lead/Step: 0.1mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.15kg
  • Stepper Drive: DM556

Reviews

There are no reviews yet.

Be the first to review “Size 57mm NEMA 23 Linear Actuator Stepper Motor Non-captive 76mm Stack Lead 4mm/10mm/20mm Length 300mm”

Your email address will not be published. Required fields are marked *

Tag: 200mm lead screw, 76mm stack, lead 10mm, lead 20mm, lead 4mm, nema 23 noncaptive
