NEMA 11 Non-captive Linear Actuator Stepper Motor 32mm Stack Lead 4mm Screw Length 150mm

$40.00

In Stock:

20

Model: 28HB32-0674N-150L54M3

Weight: 0.25KG

Certificated: ISO, CE, RoHS

Ships From China

20 in stock (can be backordered)

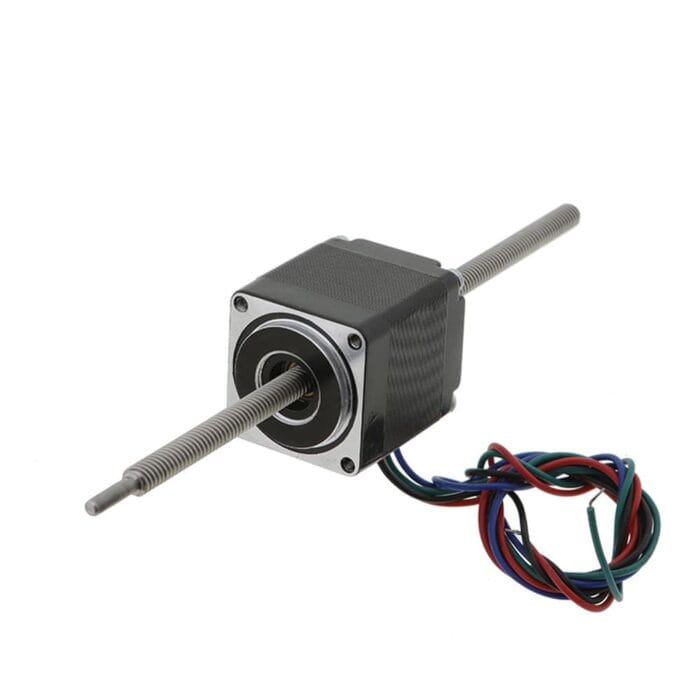

NEMA 11 Non-captive Linear Actuator Motor: This size 28mm model is a NEMA 11 Non-captive type lead screw linear actuator stepper motor with a 32mm body length, 1.8 degree step angle and 0.67A rated current. It is integrated with a Φ5mm diameter, 150mm lead screw length with M3 thread nose, the linear travel is 4mm per revolution/0.02mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 11 Non-captive Linear Actuator Motor Specification

  • Part Number: 28HB32-0674N-150L54M3
  • Motor Type: Non-captive
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 0.67A
  • Driving Voltage: 12-24VDC
  • Frame Size: 28x28mm
  • Body Length: 32mm
  • Lead Screw Length: 150mm
  • Lead Screw Diameter: Φ5mm
  • Lead/Revolution: 4mm
  • Lead/Step: 0.02mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 180g
  • Stepper Drive: FLKH2D0228DC

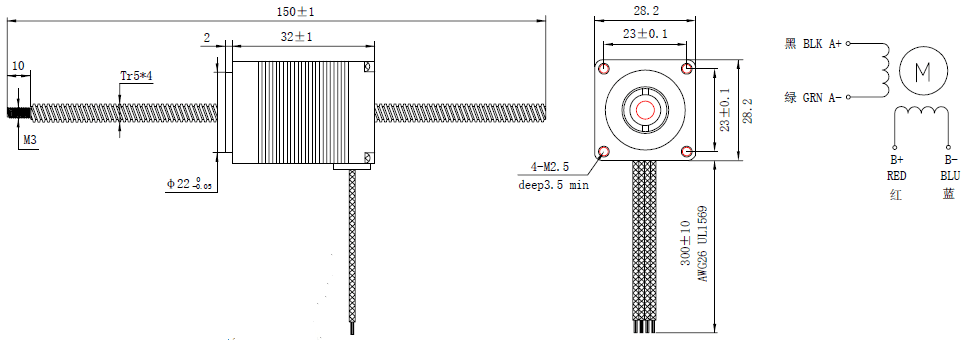

Overall Size

NEMA 11 Non-captive Linear Actuator Motor
