Size 20mm NEMA 8 Linear Actuator Closed-loop Stepper Motor Ball Screw 38mm Stack with 1000CPR Encoder

Size 20mm NEMA 8 Linear Actuator Closed-loop Stepper Motor Ball Screw 38mm Stack with 1000CPR Encoder

$150.00

In Stock:

5

Model: 20AI38EC-0604G-100L61

Weight: 0.2KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 8 Closed loop Ball Screw Linear Actuator: This size 20mm model is a NEMA 8 External type ball screw linear actuator closed-loop stepper motor with a 38mm body length & 1000cpr incremental optical encoder, 1.8 degree step angle and 0.6A rated current. It is integrated with a Φ6mm diameter, 100mm ball screw length and a ball screw nut, the linear travel is 1mm per revolution/0.005mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 8 Closed loop Ball Screw Linear Actuator Specification

NEMA 8 Closed loop Ball Screw Linear Actuator

  • Part Number: 20AI38EC-0604G-100L61
  • Motor Type: Ball Screw External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 0.6A
  • Driving Voltage: 12-24VDC
  • Frame Size: 20x20mm
  • Body Length: 38mm
  • Encoder Type: Incremental Optical
  • Encoder Resolution: 1000CPR
  • Lead Screw Length: 100mm
  • Lead Screw Diameter: Φ6mm
  • Lead/Revolution: 1.0mm
  • Lead/Step: 0.005mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 100g
  • Stepper Drive: FLKH2D1228DC

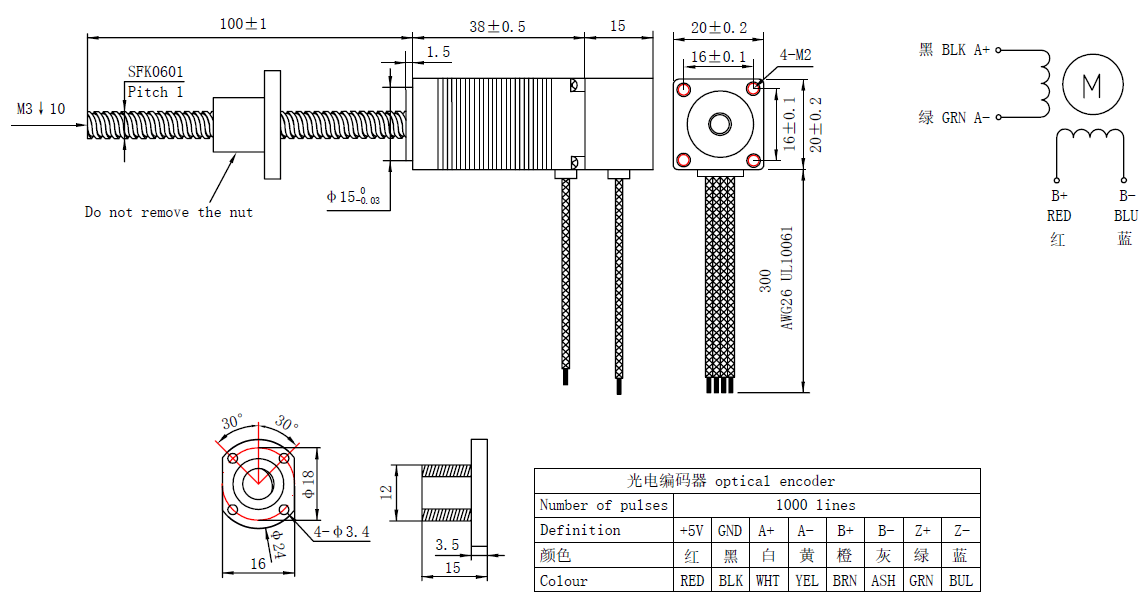

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
