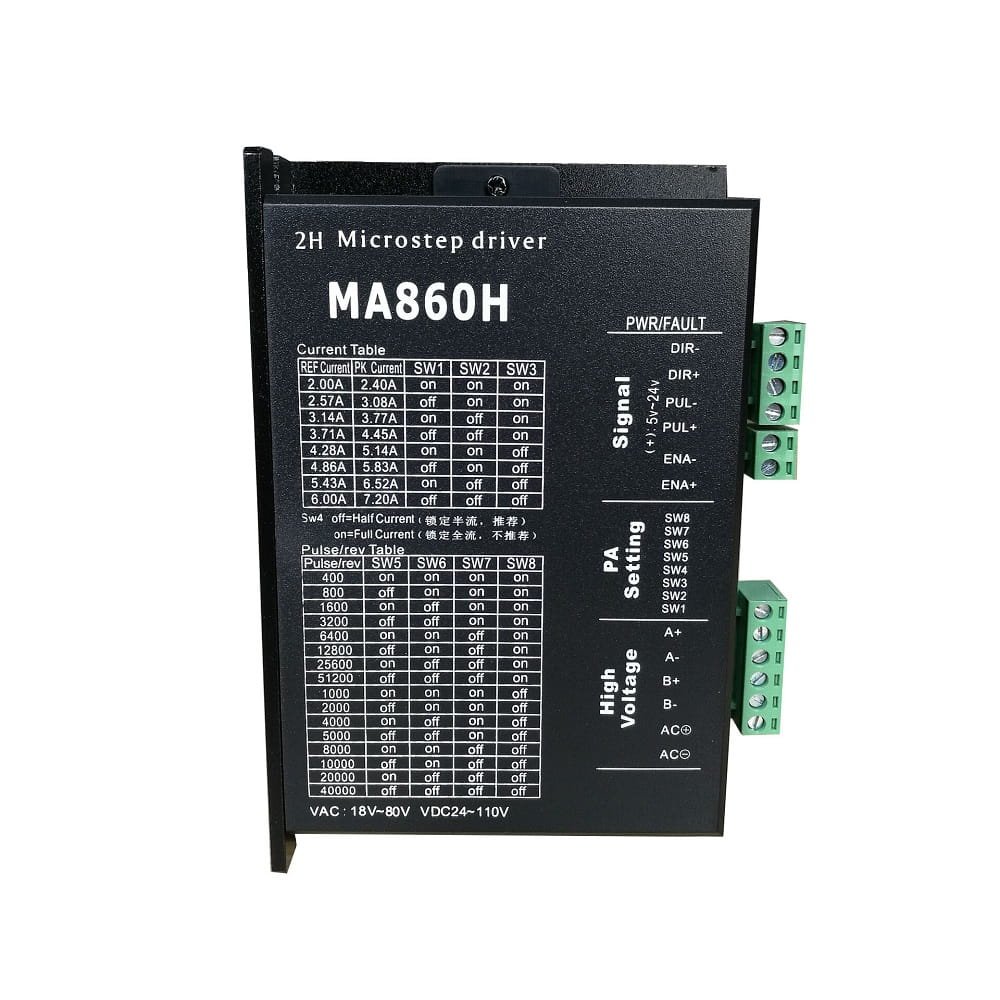

Digital Stepper Drive MA860H 2.4-7.2A 24-110VDC/18-80VAC for NEMA 24, 34 Stepper Motor

$50.00

In Stock:

10

Model: MA860H

Weight: 0.5KG

Certificated: CE, RoHS

Brand: OKD Drive

Ships From China

10 in stock

The NEMA 34 Stepper Motor Drive MA860H is a fully digital stepper driver developed with advanced DSP control algorithm based on the latest motion control technology. It provides an input voltage 24-110VDC or 18-80VAC and output current 2.4-7.2A. This drive controller MA860H is definitely capable of powering 2 phase Stepper Motors of NEMA 24 & 34.

NEMA 34 Stepper Motor Drive MA860H Specifications

  • Manufacturer Part Number: MA860H
  • Logic Input Voltage: 5V
  • Output Current: 2.4-7.2A(6.0RMS)
  • Input Voltage: 24-110VDC/18-80VAC
  • Microsteps: 200-51200
  • Pulse Input Frequency: 0-200kHz
  • Drive Mode: Pulse+Direction
  • Cooling: Natural cooling or forced cooling
  • Ambient Temperature: 0℃-50℃
  • Humidity: 40%RH-90%RH
  • Operating Temperature: 0℃-50℃
  • Storage Temperature: -20℃-65℃
  • Dimension: 151x97x53mm
  • Weight: 0.6kg

Overall Size

NEMA 34 Stepper Motor Drive MA860H
