Size 86mm NEMA 34 High Precision Planetary Gearbox Reduction Stepper Motor

Size 86mm NEMA 34 High Precision Planetary Gearbox Reduction Stepper Motor

Price range: $125.00 through $140.00

In Stock:

10

Model: 86AI115-6004S-PFXX

Weight: 6.5KG

Certificated: ISO, CE, RoHS

Ships From China

NEMA 34 Precise Geared Stepper Motor: This strong geared stepper motor has a frame size 86-115mm with rated current 6a, integrated with PLF series high precision planetary gearbox that has a wide range of gear ratio 3 to 100. It is an ideal choice for the applications that require high torque or low speed but high precision motion control.

NEMA 34 Precise Geared Stepper Motor Specification

NEMA 34 Precise Geared Stepper Motor

  • Part Number: 86AI115-6004S-PFXX
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 8.5Nm w/o gearbox
  • Rated Current/phase: 6.0A
  • Frame Size: 86x86mm
  • Motor Length: 115mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Gearbox Type: Planetary
  • Gear Ratio: 4-100:1
  • Efficiency: 94%-96%
  • Backlash at No-load: 10arcmin-15arcmin
  • Gearbox Length: 110mm-132mm
  • Shaft Diameter: Φ20mm
  • Shaft Length: 40mm
  • Keyway Length: 30mm
  • Stepper Drive: 2D872

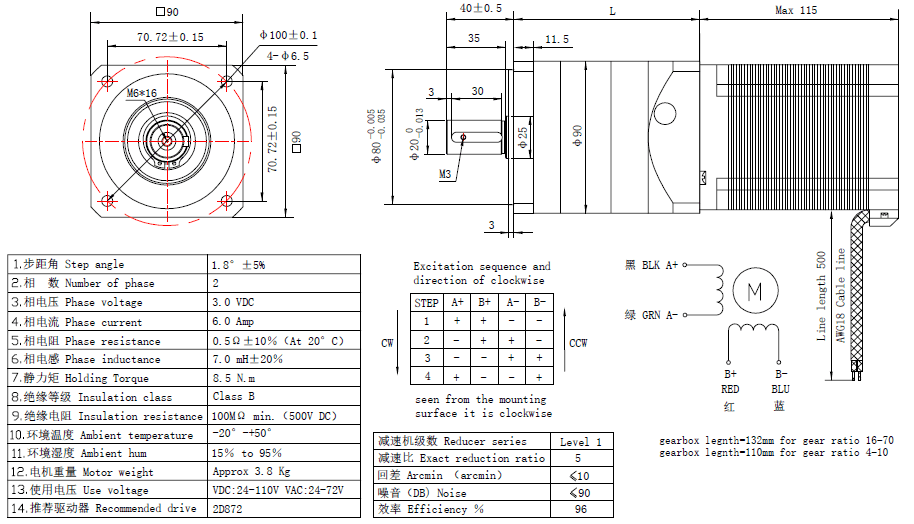

Overall Size

Gearbox Length(L)=110mm for ratio 4/1, 5/1, 10/1; 132mm for ratio 20/1, 50/1, 100/1

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
