Size 86mm NEMA 34 Linear Actuator Stepper Motor Non-captive Type 115mm Stack Lead 6.35mm with Electromagnetic Brake

Size 86mm NEMA 34 Linear Actuator Stepper Motor Non-captive Type 115mm Stack Lead 6.35mm with Electromagnetic Brake

$175.00

In Stock:

5

Model: 86AI115YS-6004N-300NG3

Weight: 4.2KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 34 Linear Actuator Motor with Brake

NEMA 34 Linear Actuator Motor with Brake: This big size 86mm model is a NEMA 34 Non-captive type lead screw linear actuator stepper motor with a 115mm body length, 1.8 degree step angle and 6.0A rated current. It is integrated with a Φ15.875mm diameter, 300mm lead screw length, the linear travel is 6.35mm per revolution/0.03175mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency. This high precision linear motion stepper motor is absolutely an ideal engine for the machines that need frequently stop and run or vertical operation.

NEMA 34 Linear Actuator Motor with Brake Specification

  • Part Number: 86AI115YS-6004N-300NG3
  • Motor Type: Non-captive
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 6.0A
  • Driving Voltage: 24-72VDC
  • Frame Size: 86x86mm
  • Body Length: 115mm
  • Lead Screw Length: 300mm
  • Lead Screw Diameter: Φ15.875mm
  • Lead/Revolution: 6.35mm
  • Lead/Step: 0.03175mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 4.2kg
  • Stepper Drive: DM870

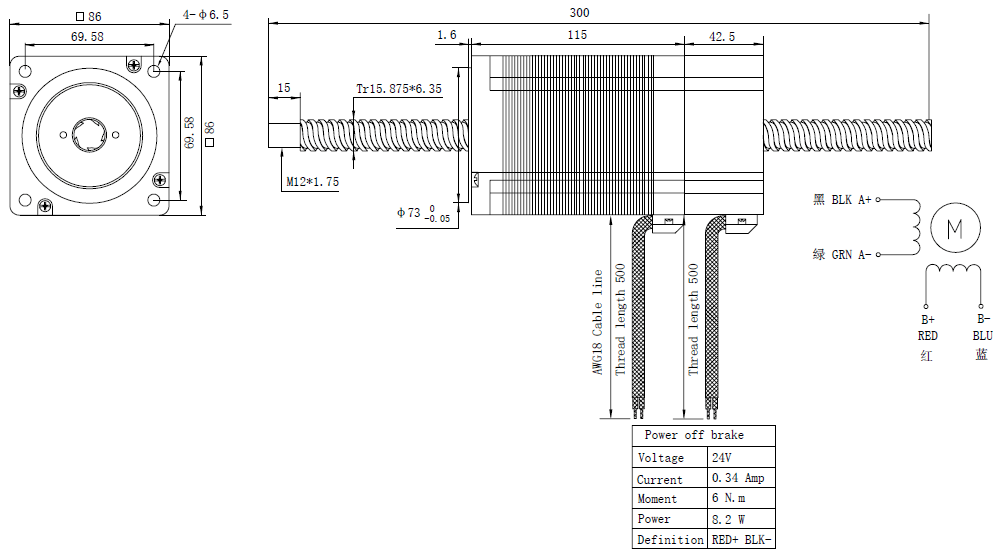

Overall Size

If you need a PDF data sheet, please feel free to email: info@frankhumotor.com.
