Size 60mm NEMA 24 Stepper Motor 4Nm with 24V Electromagnetic Brake

Size 60mm NEMA 24 Stepper Motor 4Nm with 24V Electromagnetic Brake

$65.00

In Stock:

5

Model: 60AI100-4204YS

Weight: 2.5KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 24 Stepper Motor Electromagnetic Brake: This strong NEMA 24 stepper motor has a frame size 60-100mm, holding torque 4nm with rated current 4.2a, integrated with a 24v electromagnetic brake. The brake will stop the motor shaft rotation in a very short time while the brake’s power-cut occurs. Frankhuai’s brake motors are absolutely an ideal engine for the machines that need frequently stop and run or vertical operation.

NEMA 24 Stepper Motor Electromagnetic Brake Specification

  • Part Number: 60AI100-4204YS
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 4.0Nm
    Rated Current/phase: 4.2A
    Driving Voltage: 24-48VDC
    Frame Size: 60x60mm
    Body Length: 132mm
    Shaft Diameter: Φ8mm
    Shaft Length: 21mm
    D-cut Length: 15mm
    Brake Type: Electromagnetic
    Brake Voltage: 24VDC

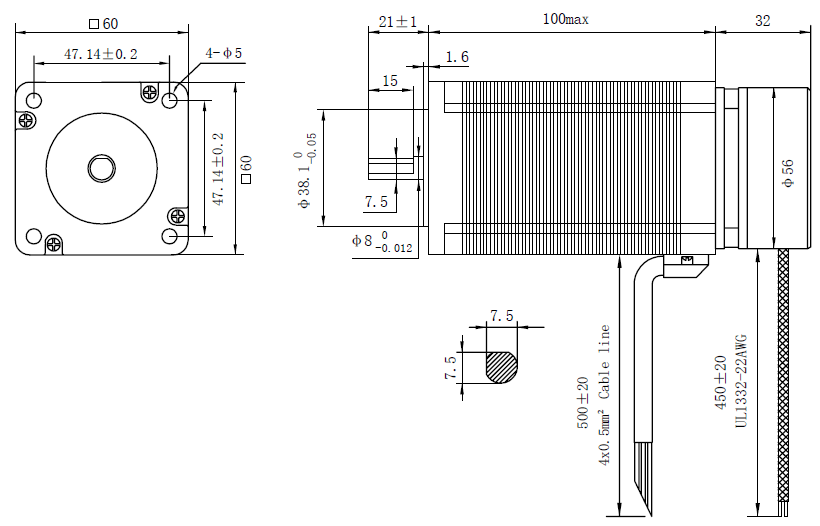

Overall Size

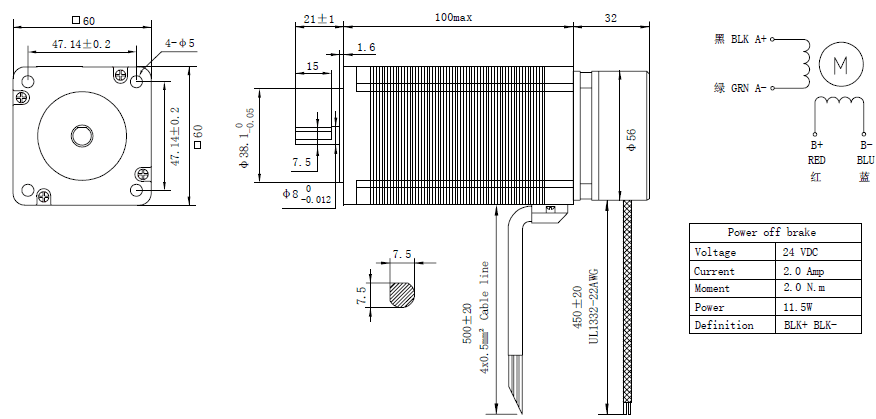

NEMA 24 Stepper Motor Electromagnetic Brake
