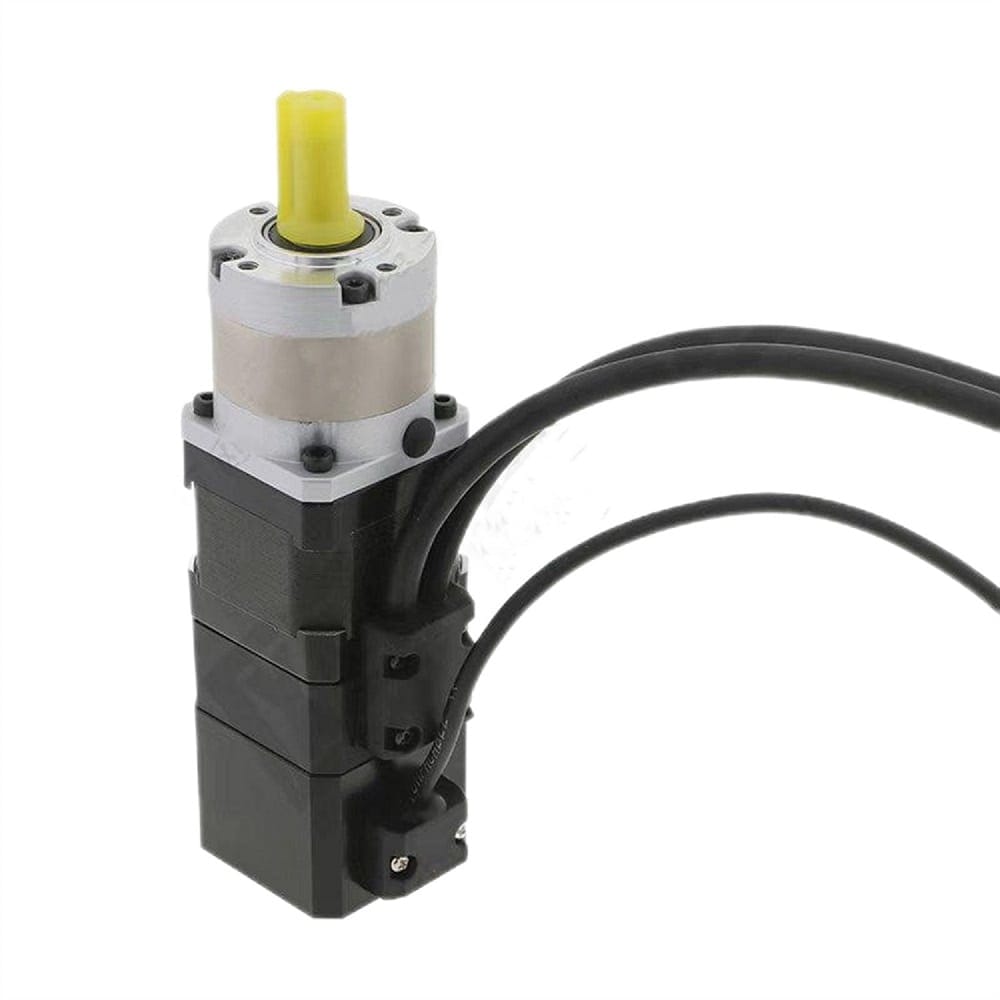

NEMA 8 Geared Stepper Motor with Encoder

NEMA 8 Closed-loop Stepper Motor 0.04Nm with Gear Ratio 5:1 Planetary Gearbox

$75.00

In Stock:

10

Model: 20AI38EC1-PG5

Weight: 0.15KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock

NEMA 8 Geared Stepper Motor with Encoder equipped with a 1000cpr incremental optical encoder & a planetary gearbox of gear ratio 4.75:1, has a rated current of 0.6A and lead to holding torque upto 0.17Nm. This NEMA 8 closed loop geared sepper motor offers higher accuracy, higher output torque, higher speed, lower motor heating, lower power consumption, and faster response to drive controllers compared to open loop stepper motors. If you don’t have a stepper drive for this model, we highly recommend: Leadshine CL42C Closed-Loop Stepper Motor Drive Controller 20-50VDC 0-3.0A

NEMA 8 Geared Stepper Motor with EncoderNEMA 8 Geared Stepper Motor with Encoder

  • Part Number: 20AI38EC1-PG5
    Step Angle: 1.8deg without gearbox
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.04Nm without gearbox
    Rated Current/phase: 0.6A
    Driving Voltage: 12-24VDC
    Frame Size: 22x22mm
    Body Length: 72.2mm
    Shaft Diameter: Φ6mm
    Shaft Length: 15mm
    D-cut Length: 9mm
    Encoder Type: Incremental Optical
    Encoder Resolution: 1000CPR

Overall Size

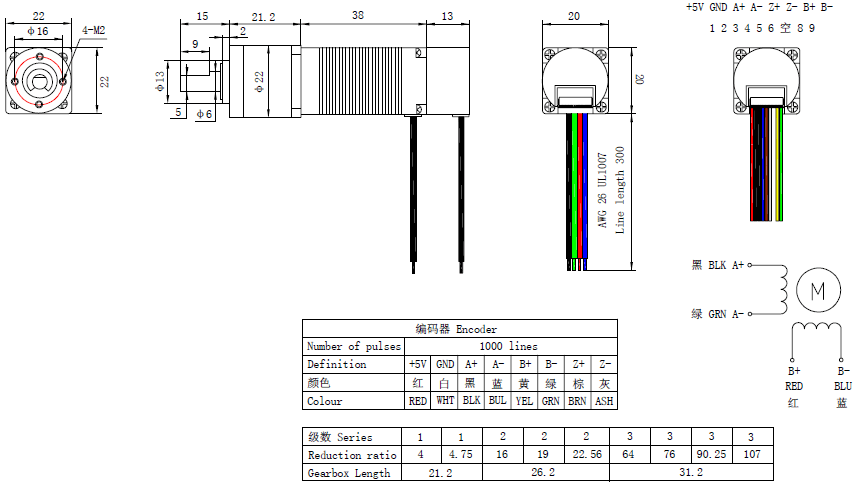

20AI38EC1-PG5 Datasheet

20AI38EC1-PG5 Datasheet

If your drive controller don’t support Z signal, then you can leave Z unconnected.

If you need a PDF data sheet, please send an email to: info@frankhumotor.com!
