Size 57mm NEMA 23 Pancake Stepper Motor Round 0.06Nm 0.8A 57x9.6mm 14 Teeth Gear

Size 57mm NEMA 23 Pancake Stepper Motor Round 0.06Nm 0.8A 57×9.6mm 14 Teeth Gear

$25.00

In Stock:

10

Model: 57AI10-0804T

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

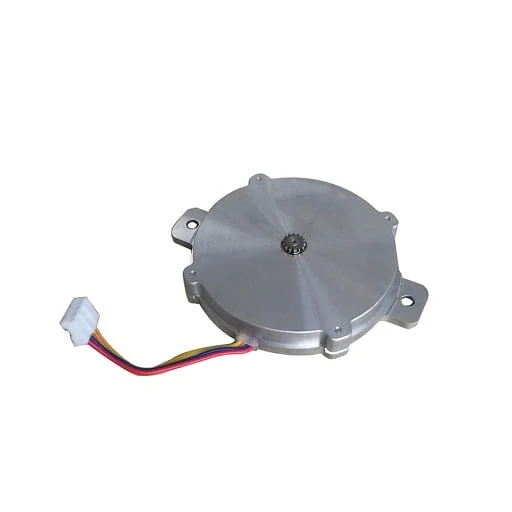

NEMA 23 Ultrathin Stepper Motor: This size 57mm NEMA 23 pancake stepper motor has a ultrathin body length 10mm, each phase draws 0.8A current and 0.06Nm holding torque. A 14 teeth gear with 0.4 module is mounted on the shaft.

NEMA 23 Ultrathin Stepper Motor Specification

NEMA 23 Ultrathin Stepper Motor

  • Part Number: 57AI10-0804T
  • Step Angle: 1.8deg
  • Holding Torque: 0.06Nm
  • Rated Current/phase: 0.8A
  • Driving Voltage: 12-48VDC
  • Frame Size: Φ57mm
  • Body Length: 9.6mm
  • Gear Teeth Number: 14
  • Gear Module: 0.4
  • Number of Leads: 4
  • Lead Length: 45mm
  • Weight: 75g
  • Stepper Drive: FLKH2D1228DC

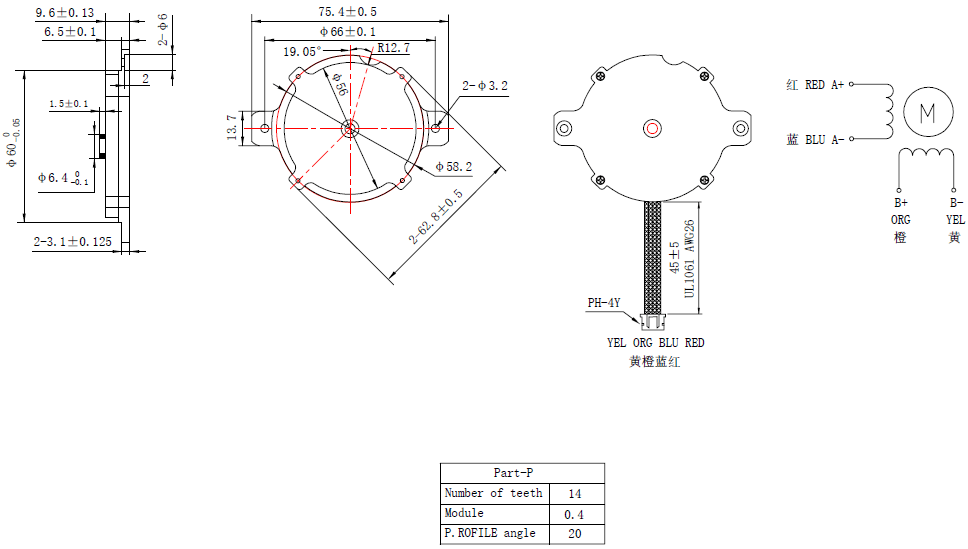

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!

Reviews

There are no reviews yet.

Be the first to review “Size 57mm NEMA 23 Pancake Stepper Motor Round 0.06Nm 0.8A 57×9.6mm 14 Teeth Gear”

Your email address will not be published. Required fields are marked *

Tag: 0.06nm, 14 teeth gear, nema 23, pancake stepper motor, round stepper motor, ultrathin motor

Related Products

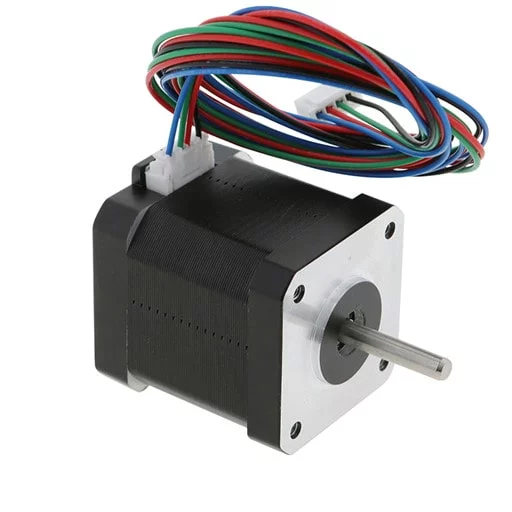

  • High Temperature Stepper Motor NEMA 17 Bipolar 42-48mm 0.6Nm 2A

    High Temperature NEMA 17 Stepper Motor 0.6Nm 2A 42x48mm Insulation Class H

    $20.00

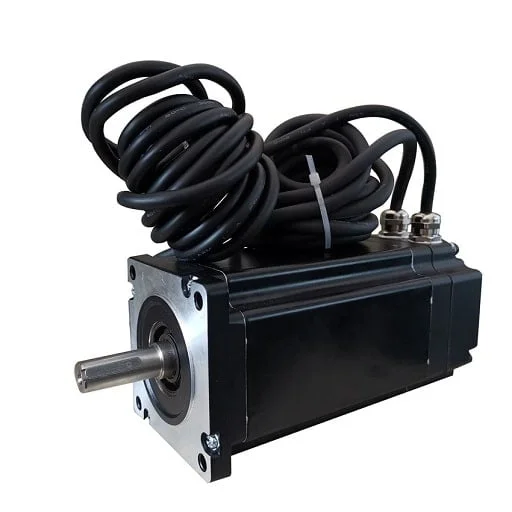

  • Size 86mm NEMA 34 Closed-loop Stepper Motor Waterproof IP65 12Nm with 1000CPR Encoder

    $85.00

  • Size 86mm NEMA 34 Closed-loop Stepper Motor Waterproof IP65 8.5Nm with 1000CPR Encoder

    $75.00

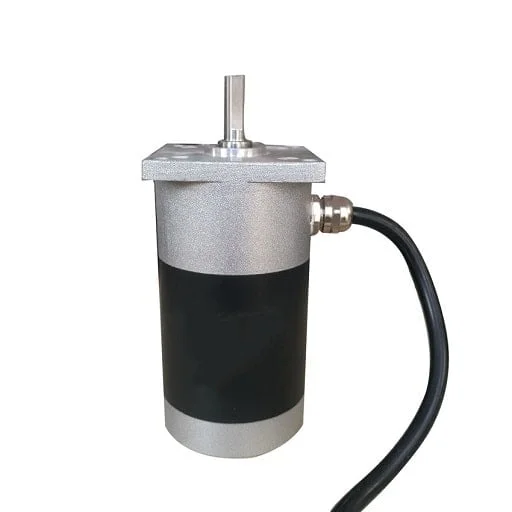

  • Size 57mm NEMA 23 Stepper Motor Waterproof IP68 2.5Nm 3A 57x108mm
