Flat Stepper Motor NEMA 11/NEMA 18/NEMA 23 Ultrathin Electric Pancake Engine

$25.00

In Stock:

20

Model: Pancake Stepper Motor

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUMOTOR

Ships From China

FLAT Stepper Motor NEMA 11/NEMA 18/NEMA 23 Ultrathin Pancake Electric Engine

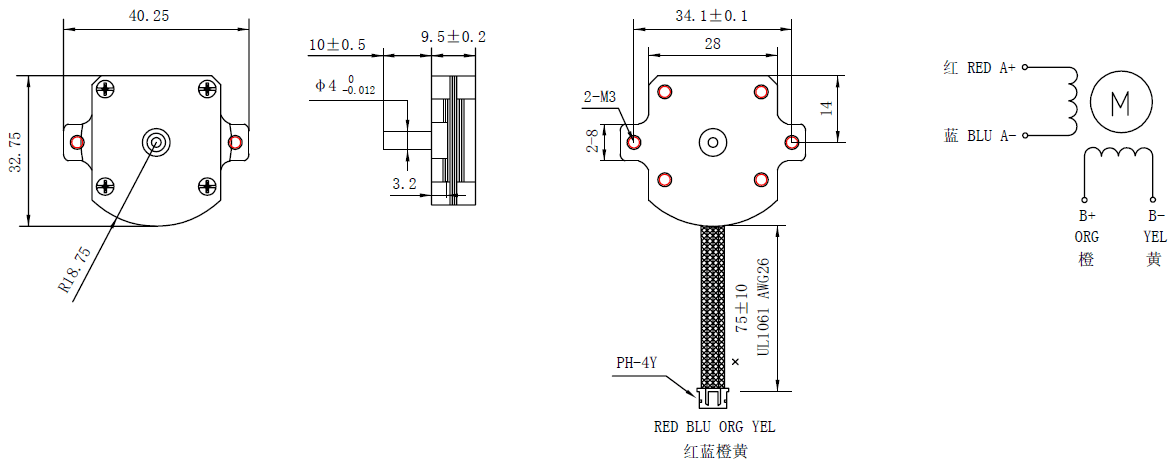

NEMA 11 Specification – 28HB10-0504S: 1.8deg, 0.05A, 0.016Nm

Flat Stepper Motor

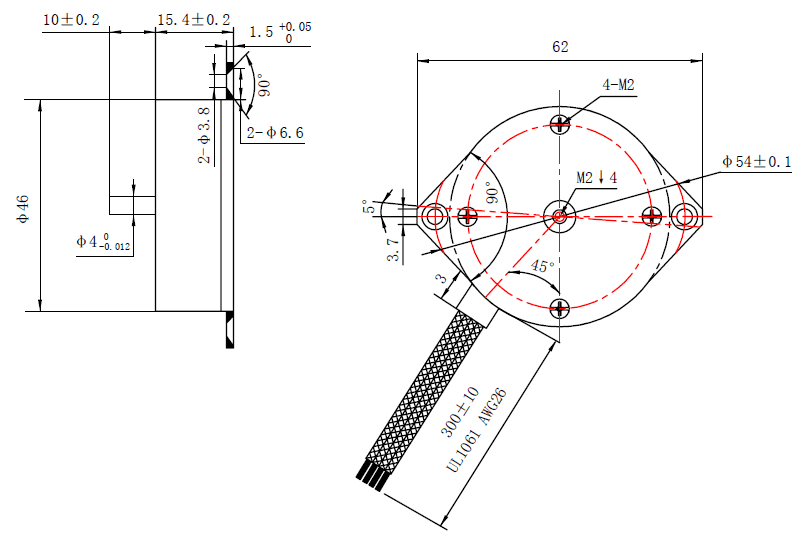

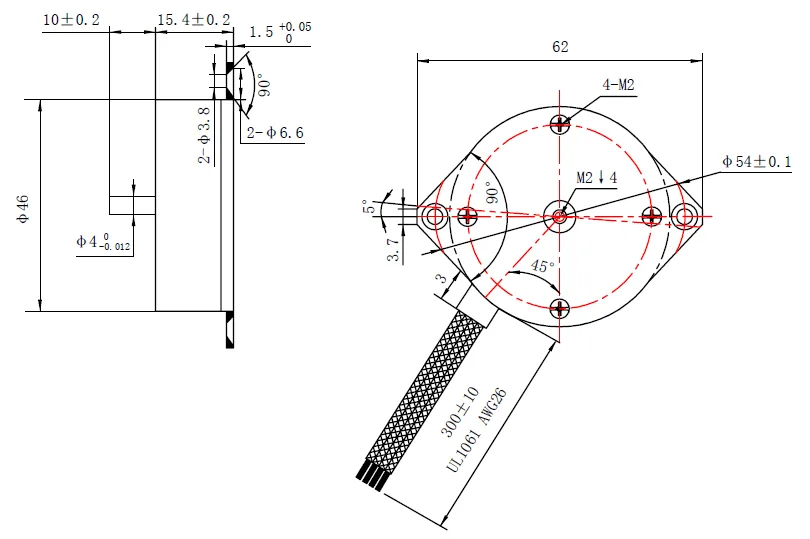

NEMA 18 Specification – 46HB15-1004S: 1.8deg, 1.0A, 0.1Nm

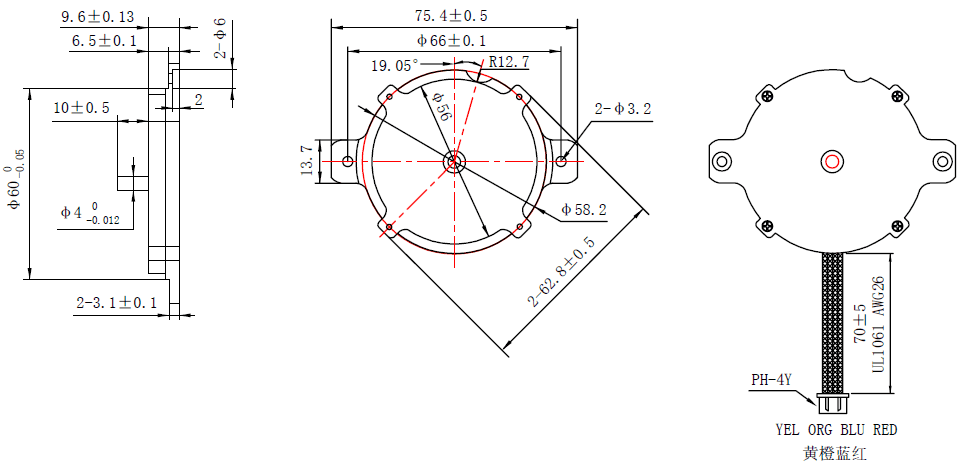

NEMA 23 Specification – 57HB10-0804S: 1.8deg, 0.8A, 0.06Nm
