Size 42mm NEMA 17 Pancake Stepper Motor Round 0.04Nm 0.5A 42×9.8mm Ultrathin Body

$19.90

In Stock:

10

Model: 42AI10-0504T

Weight: 0.06KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock (can be backordered)

This size 42mm NEMA 17 pancake stepper motor has an ultrathin body length 9.8mm, each phase draws 0.5A current and 0.04Nm holding torque. It has a 16 teeth sun gear on the axle, which transmits power to 24 teeth planetary gear.

NEMA 17 Pancake Stepper Motor Specification

  • Part Number: 42AI10-0504T
  • Step Angle: 1.8deg
  • Holding Torque: 0.04Nm
  • Rated Current/phase: 0.5A
  • Driving Voltage: 12-24VDC
  • Insulation Class: B 130°C
  • Frame Size: Φ42x42mm
  • Body Length: 9.8mm
  • Number of Leads: 4
  • Lead Length: 210mm
  • Weight: 60g

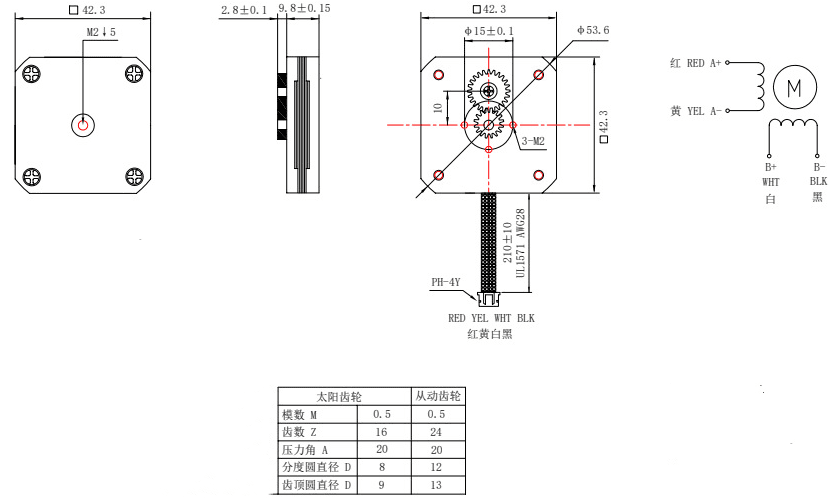

Overall Size

NEMA 17 Pancake Stepper Motor
