Size 57mm NEMA 23 Linear Actuator Stepper Motor Non-Captive 56mm Stack Screw Dia. 8mm Lead 2mm Length 200mm

$52.00

In Stock:

10

Model: 57AI56-2804N-200L82

Weight: 0.8KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock (can be backordered)

NEMA 23 Linear Stepper Motor Noncaptive: This size 57mm model is a NEMA 23 Non-captive type lead screw linear actuator stepper motor with a 56mm body length, 1.8 degree step angle and 2.8A rated current. It is integrated with a Φ8mm diameter, 200mm lead screw length, the linear travel is 2mm per revolution/0.01mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 23 Linear Stepper Motor Noncaptive Specification

  • Part Number: 57AI56-2804N-200L82
  • Motor Type: Non-captive
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 2.8A
  • Holding Torque: 1.2Nm
  • Insulation Class: B 130°C
  • Driving Voltage: 24-48VDC
  • Frame Size: 57x57mm
  • Body Length: 56mm
  • Lead Length: 200mm
  • Lead Screw Diameter: Φ8mm
  • Lead/Revolution: 2mm
    Lead/Step: 0.01mm
  • Lead Length: 500mm
  • Weight: 700g

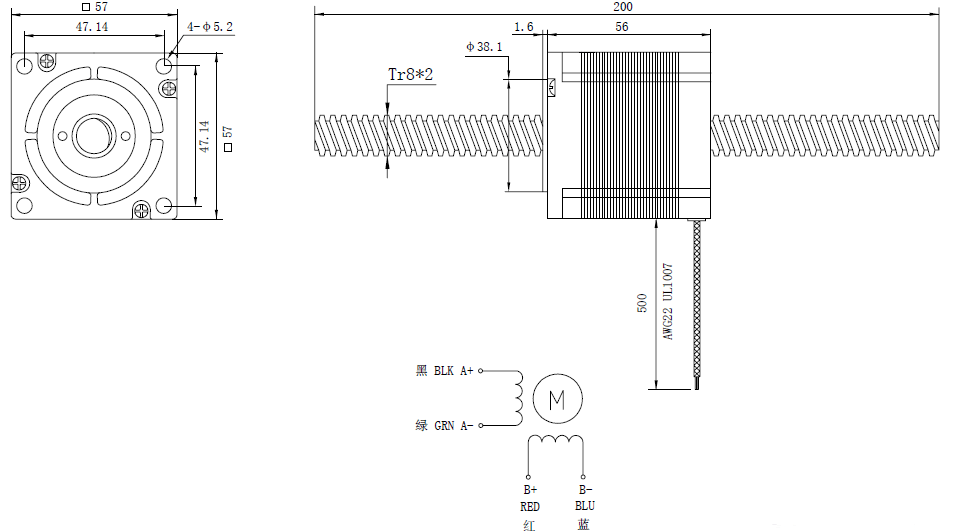

Overall Size

NEMA 23 Linear Stepper Motor Noncaptive
