Size 86mm NEMA 34 Linear Actuator Stepper Motor Non-captive Type 98mm Stack Lead 4mm Length 300mm

$135.00

In Stock:

5

Model: 86AI98-6004N-300L164

Weight: 3.3KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

5 in stock (can be backordered)

NEMA 34 Noncaptive Linear Stepper Motor: This big size 86mm model is a NEMA 34 Non-captive type lead screw linear actuator stepper motor with a 98mm body length, 1.8 degree step angle and 6.0A rated current. It is integrated with a Φ16mm diameter, 300mm lead screw length, the linear travel is 4mm per revolution/0.02mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 34 Noncaptive Linear Stepper Motor Specification

  • Part Number: 86AI98-6004N-300L164
  • Motor Type: Non-captive
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 6.0A
  • Holding Torque: 6.0Nm
  • Insulation Class: B 130°C
  • Driving Voltage: 24-72VDC
  • Frame Size: 86x86mm
  • Body Length: 98mm
  • Lead Screw Length: 300mm
  • Lead Screw Diameter: Φ16mm
  • Lead/Revolution: 4mm
  • Lead/Step: 0.02mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 3.6kg

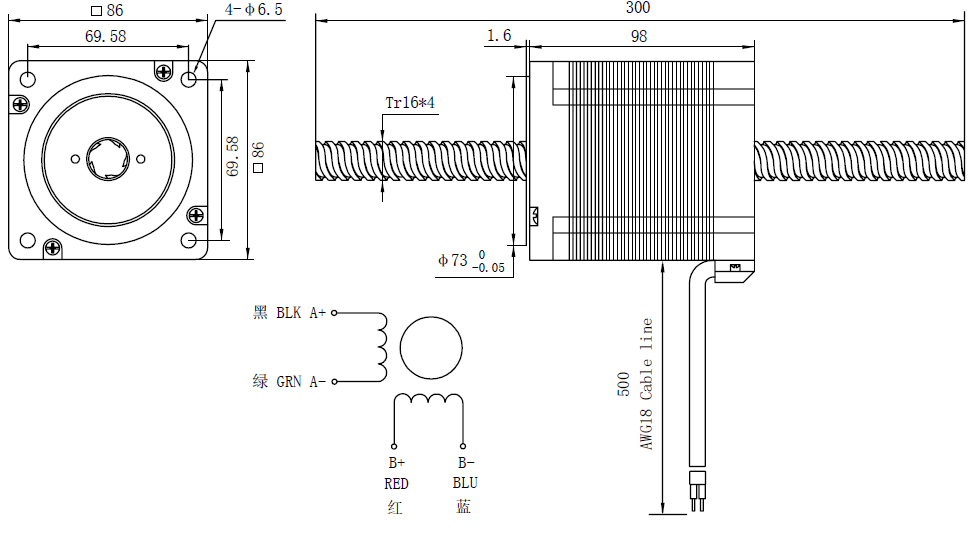

Overall Size

NEMA 34 Noncaptive Linear Stepper Motor
