Size 57mm NEMA 23 Linear Actuator Stepper Motor External Type 56mm Stack Lead 8mm Length 300mm

Size 57mm NEMA 23 Linear Actuator Stepper Motor External Type 56mm Stack Lead 8mm Length 300mm

$50.00

In Stock:

5

Model: 57AI56-2804E-300N88

Weight: 0.8KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 23 Lead Screw Stepper Motor: This size 57mm model is a NEMA 23 External type lead screw linear actuator stepper motor with a 56mm body length, 1.8 degree step angle and 2.8A rated current. It is integrated with a Φ8mm diameter, 300mm lead screw length and a POM screw nut, the linear travel is 8mm per revolution/0.04mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency

NEMA 23 Lead Screw Stepper Motor Specification

  • Part Number: 57AI56-2804E-300N88
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 2.8A
  • Driving Voltage: 24-48VDC
  • Frame Size: 57x57mm
  • Body Length: 56mm
  • Lead Length: 300mm
  • Lead Screw Diameter: Φ8mm
  • Lead/Revolution: 8mm
  • Lead/Step: 0.04mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 700g

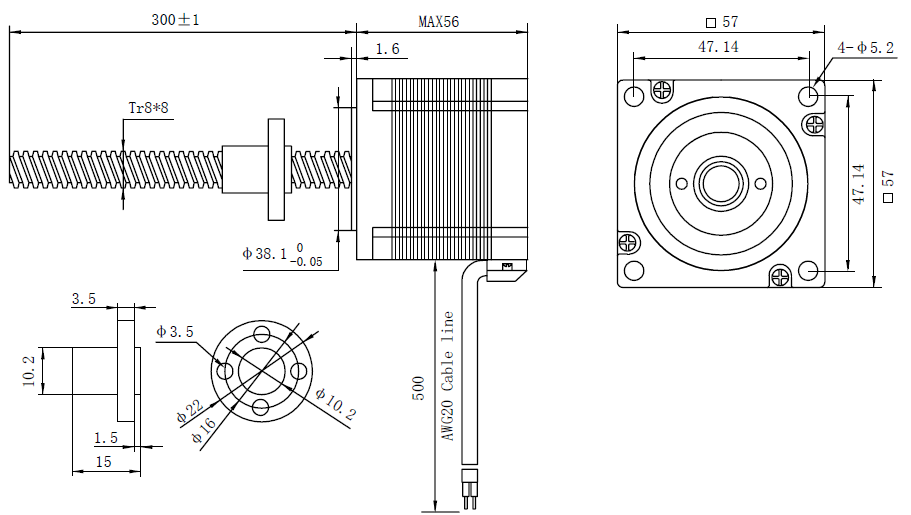

Overall Size

NEMA 23 Lead Screw Stepper Motor
