Size 57mm NEMA 23 Linear Actuator Stepper Motor Non-captive 76mm Stack Screw Dia. 11mm Lead 4mm Length 300mm

$65.00

In Stock:

10

Model: 57AI76-4204N-300L114

Weight: 1.2KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUMOTOR

Ships From China

10 in stock (can be backordered)

NEMA 23 Lead Screw Stepper Motor High Thrust: This size 57mm model is a NEMA 23 Non-captive type lead screw linear actuator stepper motor with a 76mm body length, 1.8 degree step angle and 4.2A rated current. It is integrated with a Φ11mm diameter, 300mm lead screw length, the linear travel is 4mm per revolution/0.02mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 23 Lead Screw Stepper Motor High Thrust Specification

  • Part Number: 57AI76-4204N-300L114
  • Motor Type: Non-captive
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 4.2A
  • Holding Torque: 1.9Nm
  • Insulation Class: B 130°C
  • Driving Voltage: 24-48VDC
  • Frame Size: 57x57mm
  • Body Length: 76mm
  • Lead Length: 300mm
  • Lead Screw Diameter: Φ11mm
  • Lead/Revolution: 4mm
  • Lead/Step: 0.02mm
  • Lead Length: 500mm
  • Weight: 1.15kg

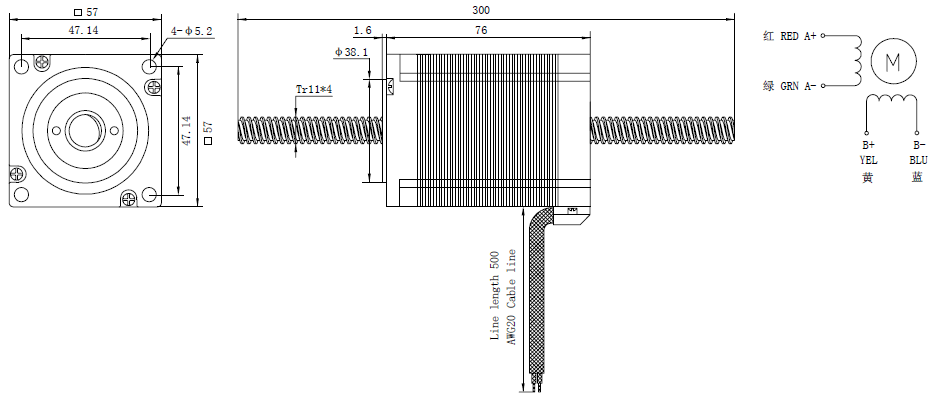

Overall Size

NEMA 23 Lead Screw Stepper Motor High Thrust
