NEMA 23 Integrated Closed-loop Stepper Motor 1.3Nm 24-48VDC 14-bit Encoder

NEMA 23 Integrated Closed-loop Stepper Drive Motor 1.3Nm 24-48VDC 14-bit Encoder

$90.00

In Stock:

9

Model: iCL57-13

Weight: 0.85KG

Certificated: ISO, CE, RoHS

Ships From China

9 in stock (can be backordered)

This iCL57-13 NEMA 23 integrated closed-loop drive motor has a holding torque 1.3Nm/184.6oz-in and a overall body length 75.3mm, integrated with a 14-bit incremental magnetic encoder and 24-48VDC drive, which can solve the loss of step problems in open loop control system. It also has a very compact size and makes all components integrated together (encoder connection, drive board and motor wiring) to reduce interference, cut cable and labor costs, and save the mounting space.
The iCL57-13 NEMA 23 integrated closed-loop drive motor 1-3Nm is exactly reliable and affordable, and has excellent performances in many industrial applications such as CNC router, 3D printer, robotics. etc.

NEMA 23 integrated closed-loop drive motor 1-3Nm Specifications

NEMA 23 integrated closed-loop drive motor 1-3Nm

  • Manufacturer Part Number: iCL57-13
    Holding Torque: 1.3Nm/184.6oz-in
    Power Voltage: 24-48VDC
    Rated Current: 0.3-3.2A
    Logical Current: 7-16mA
    Logical Voltage: 5V
    Max. Input Frequency: 200KHz
    Frame Size: 57x57mm
    Body Length: 84.8mm
    Shaft Diameter: 8mm
    Shaft Length: 21mm
    Weight: 0.85kg
    Environment: Avoid dust, oil fog and corrosive gases
    Humidity: 40%RH-90%RH
    Operating Temperature: 0°C-40°C
    Vibration: 10-50Hz/0.15mm
    Storage Temperature: 0°C-65°C

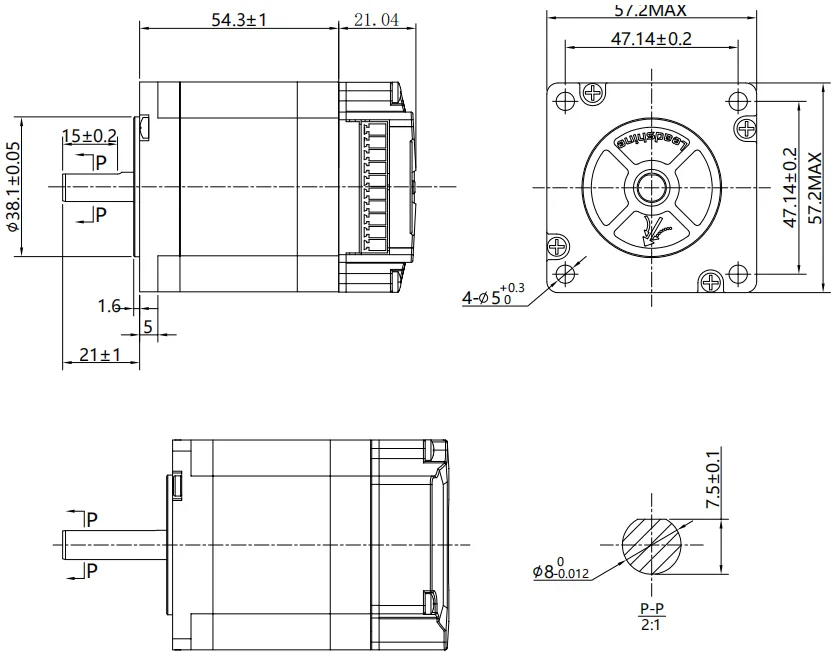

Overall Size

iCL57-13 Datasheet

If you need a PDF datasheet, please send the email to: info@frankhumotor.com.
