This iCL42-06 NEMA 17 integrated closed-loop drive motor has a holding torque 0-6Nm/85.2oz-in and a overall body length 72.3mm, integrated with a 14-bit incremental magnetic encoder and 24-48VDC drive, which can solve the loss of step problems in open loop control system. It also has a very compact size and makes all components integrated together (encoder connection, drive board and motor wiring) to reduce interference, cut cable and labor costs, and save the mounting space.
The iCL42-06 NEMA 17 integrated closed-loop drive motor 0-6Nm is exactly reliable and affordable, and has excellent performances in many industrial applications such as CNC router, 3D printer, robotics. etc.

NEMA 17 integrated closed-loop drive motor 0-6Nm Specification

• Manufacturer Part Number: iCL42-06
• Holding Torque: 0.6Nm/85.2oz-in
• Power Voltage: 24-36VDC
• Rated Current: 0.3-2.2A
• Logical Current: 7-16mA
• Logical Voltage: 5V
• Max. Input Frequency: 200KHz
• Frame Size: 42x42mm
• Body Length: 72.3mm
• Shaft Diameter: Φ5mm
• Shaft Length: 24mm
• Weight: 0.7kg
• Environment: Avoid dust, oil fog and corrosive gases
• Humidity: 40%RH-90%RH
• Operating Temperature: 0°C-40°C
• Vibration: 10-50Hz/0.15mm
• Storage Temperature: 0°C-65°C

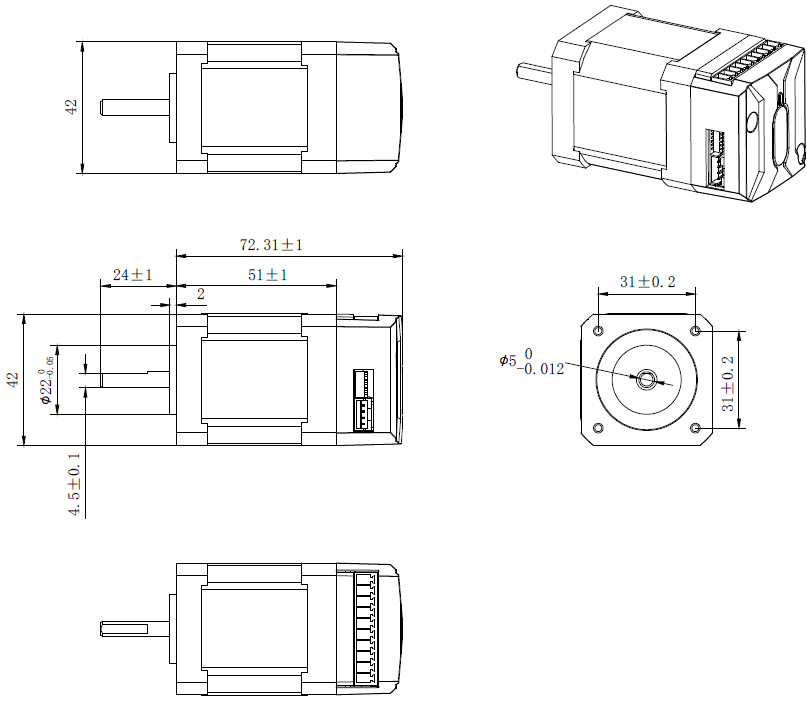

Overall Size
