This iCL60-30 NEMA 23 integrated closed-loop drive motor has a holding torque 3.0Nm/426oz-in and a overall body length 110mm, integrated with a 14-bit incremental magnetic encoder and 24-48VDC drive, which can solve the loss of step problems in open loop control system. It also has a very compact size and makes all components integrated together (encoder connection, drive board and motor wiring) to reduce interference, cut cable and labor costs, and save the mounting space.
The iCL60-30 NEMA 24 integrated closed-loop drive motor 3Nm is exactly reliable and affordable, and has excellent performances in many industrial applications such as CNC router, 3D printer, robotics. etc.

NEMA 24 integrated closed loop motor 3Nm Specifications

• Manufacturer Part Number: iCL60-30
  Holding Torque: 3.0Nm/426oz-in
  Power Voltage: 24-48VDC
  Rated Current: 0.3-5.0A
  Logical Current: 7-16mA
  Logical Voltage: 5V
  Max. Input Frequency: 200KHz
  Frame Size: 60x60mm
  Body Length: 110mm
  Shaft Diameter: 8mm
  Shaft Length: 21mm
  Weight: 1.7kg
  Environment: Avoid dust, oil fog and corrosive gases
  Humidity: 40%RH-90%RH
  Operating Temperature: 0°C-40°C
  Vibration: 10-50Hz/0.15mm
  Storage Temperature: 0°C-65°C

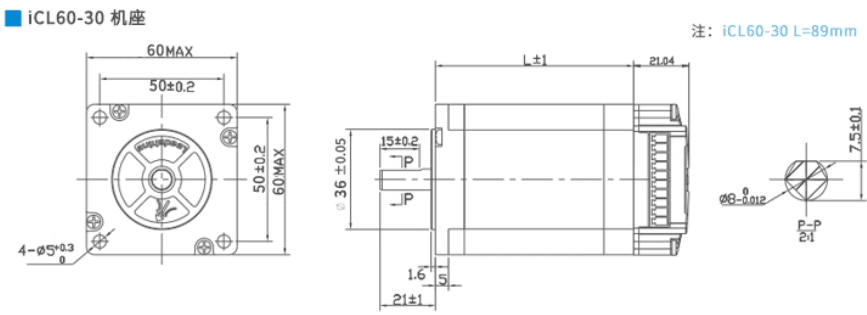

Overall Size
