Size 42mm NEMA 17 Linear Actuator Stepper Motor External Type 48mm Stack Lead 2mm Length 200mm

Size 42mm NEMA 17 Linear Actuator Stepper Motor External Type 48mm Stack Lead 2mm Length 200mm

$44.00

In Stock:

5

Model: 42AI48-1684E-200NF2

Weight: 0.5KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 17 Lead Screw Stepper Motor 48mm: This size 42mm model is a NEMA 17 External type lead screw linear actuator stepper motor with a 48mm body length, 1.8degree step angle and 1.68A rated current. It is integrated with a Φ6.35mm diameter, 200mm lead screw length and a POM screw nut, the linear travel is 2mm per revolution/0.01mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 17 Lead Screw Stepper Motor 48mm Specification

NEMA 17 Lead Screw Stepper Motor 48mm

  • Part Number: 42AI48-1684E-200NF2
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 1.68A
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 48mm
  • Lead Screw Length: 200mm
  • Lead Screw Diameter: Φ6.35mm
  • Lead/Revolution: 2mm
  • Lead/Step: 0.01mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 400g
  • Stepper Drive: FLKH2D1228DC

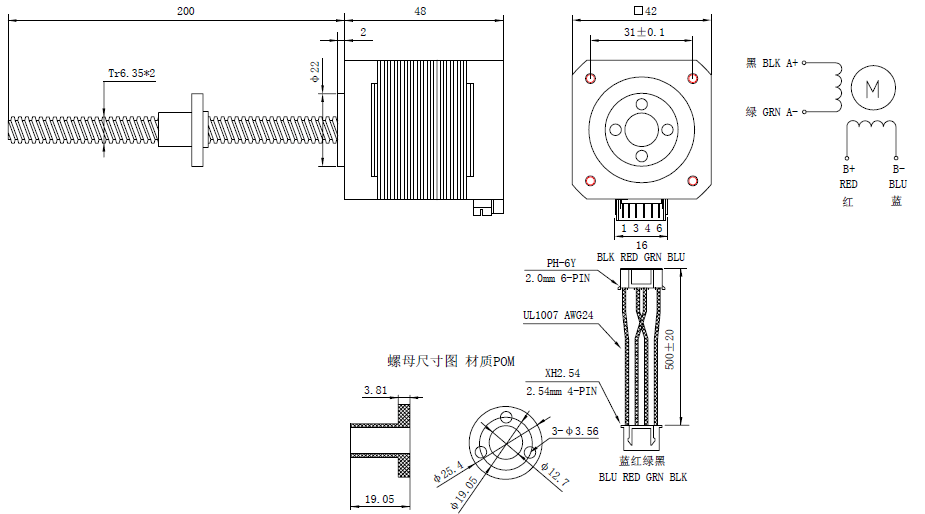

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
