Size 42mm NEMA 17 Linear Actuator Stepper Motor External Type 40mm Stack Lead 4mm Length 306mm

Size 42mm NEMA 17 Linear Actuator Stepper Motor External Type 40mm Stack Lead 4mm Length 306mm

$42.00

In Stock:

5

Model: 42AI40-2004E-306N84

Weight: 0.4KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 17 Lead Screw Stepper Motor 40mm: This size 42mm model is a NEMA 17 External type lead screw linear actuator stepper motor with a 40mm body length, 1.8 degree step angle and 2.0A rated current. It is integrated with a Φ8mm diameter, 306mm lead screw length and a copper screw nut, the linear travel is 4mm per revolution/0.02mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 17 Lead Screw Stepper Motor 40mm Specification

  • Part Number: 42AI40-2004E-306N84
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 2.0A
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 40mm
  • Lead Screw Length: 306mm
  • Lead Screw Diameter: Φ8mm
  • Lead/Revolution: 4mm
  • Lead/Step: 0.02mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 300g

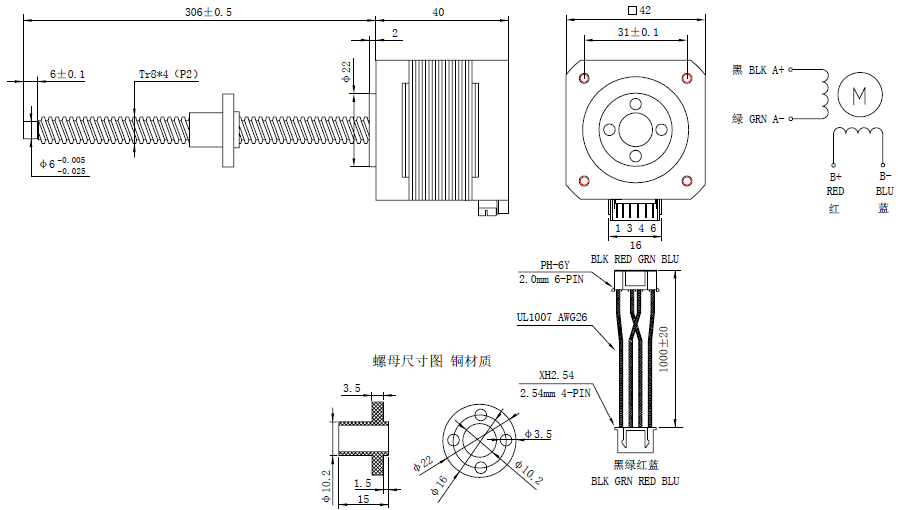

Overall Size

NEMA 17 Lead Screw Stepper Motor 40mm
