Size 42mm NEMA 17 Stepper Motor 0.9deg L=48mm with 24V Brake & Precision Planetary Gearbox

Size 42mm NEMA 17 Stepper Motor 0.9deg L=48mm with 24V Brake & Precision Planetary Gearbox

$80.00 – $85.00

In Stock:

25

Model: 42AI48-YS-KGXX

Weight: 1.0KG

Certificated: ISO, CE, RoHS

Ships From China

NEMA 17 Geared Stepper Motor with Brake: This geared NEMA 17 stepper motor has a frame size 42-48mm, holding torque 0.46nm with rated current 2.1a, integrated with a 24v electromagnetic brake & KG series high precision planetary gearbox. The brake will stop the motor shaft rotation in a very short time while the brake’s power-cut occurs. Frankhuai’s brake motors are absolutely an ideal engine for the machines that need frequently stop and run or vertical operation.

NEMA 17 Geared Stepper Motor with Brake Specification

NEMA 17 Geared Stepper Motor with Brake

  • Part Number: 42AI48-YS-KGXX
    Step Angle: 0.9deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.4Nm
    Rated Current/phase: 1.7A
    Driving Voltage: 12-24VDC
    Frame Size: 42x42mm
    Motor Length: 48mm
    Brake Type: Electromagnetic
    Brake Voltage: 24VDC
    Gearbox Type: Planetary
    Gear Ratio: 4-70:1
    Efficiency: 96%-94%
    Backlash at No-load: 15arcmin-20arcmin
    Gearbox Length: 40mm-51mm
    Shaft Diameter: Φ8mm
    Shaft Length: 21.5mm
    Keyway Length: 15mm
  • Stepper Drive: FLKH2D1228DC

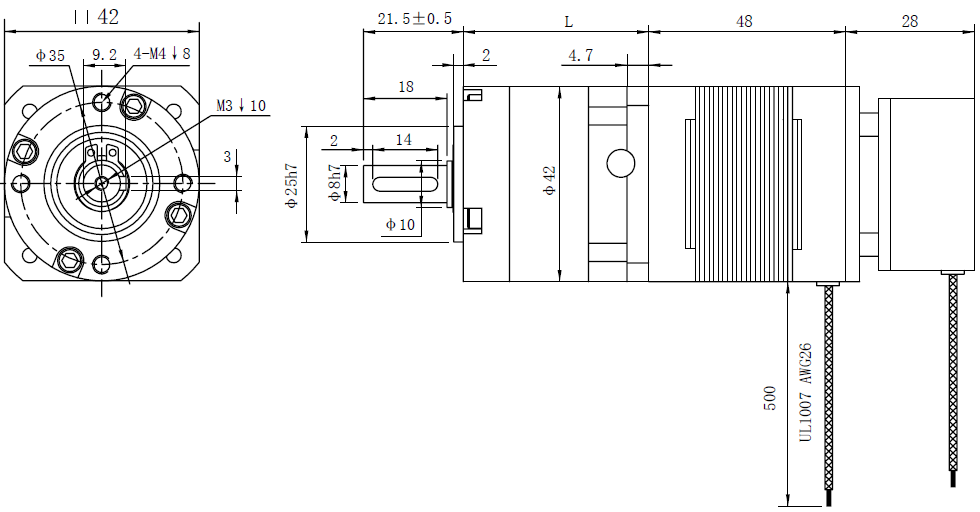

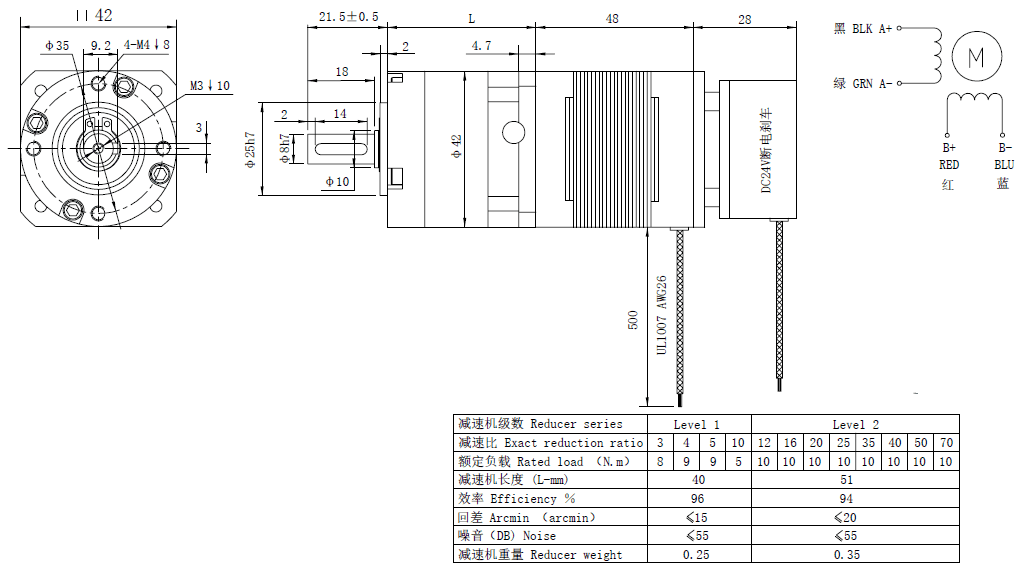

Overall Size

Gearbox Length(L)=40mm for ratio 5/1, 10/1; 51mm for ratio 20/1, 50/1

If you need a PDF data sheet, please send an email to: info@frankhumotor.com!
