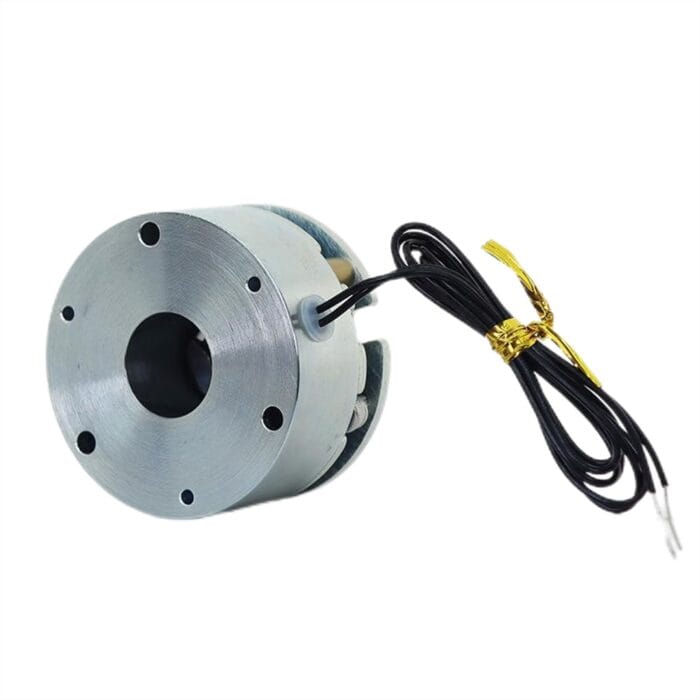

SWB-03 DC Electromagnetic Brake 24V 2Nm for NEMA 23 & 24 Motor

$18.50

In Stock:

500

Model: SWB-03

Weight: 0.45KG

Certificated: ISO, CE

Ships From China

500 in stock

This SWB-03 DC electromagnetic brake is operates with 24VDC, generating a maximum 2Nm static friction torque. It’s a good choice for NEMA 23 and NEMA 24 stepper motors, BLDC Motors or other matched motors.

SWB-03 Brake Specification

  • Brake Type: Electromagnetic
    Static Friction Torque: 2Nm
    Rated Voltage: 24VDC
    Rated Power: 11.5W
    Heat-resistance Class: F
    Max. Speed : 5000rpm
    Weight : 0.4kg

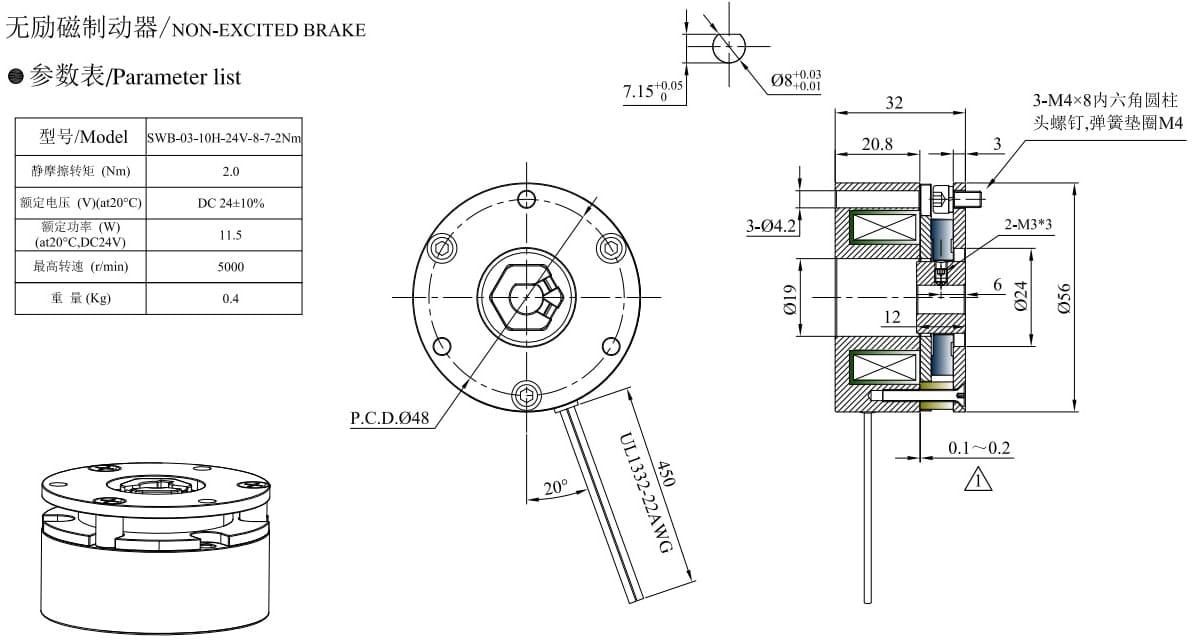

Overall Size

SWB-03 Brake
