Closed Loop Stepper Servo Drive CL42 18-90VDC for NEMA 8, 11, 14, 17 Stepper Motor

Name: NEMA 17 Closed Loop Stepper Drive CL42 18-90VDC
Brand: nema 11 closed loop
SKU: CL42
Price: 59.00 USD
Availability: InStock

$59.00

In Stock:

10

Model: CL42

Weight: 0.4KG

Certificated: CE, RoHS

Brand: OKD Drive

Ships within 24 hours for items in stock!

Ships From China

10 in stock

The NEMA 17 Closed Loop Stepper Drive CL42 is a fully digital stepper driver developed with advanced DSP control algorithm based on the latest motion control technology. It provides an input voltage 18-90VDC and output current upto 5.0A. This servo drive controller CL42 is definitely capable of powering Closed Loop Stepper Motors of NEMA 8, 11, 14, 17.

NEMA 17 Closed Loop Stepper Drive Specifications

Manufacturer Part Number: CL42
Logic Input Voltage: 5V/24V
Output Current: 0-5.0A(3.5RMS)
Input Voltage: 18-90VDC
Microsteps: 200-51200
Pulse Input Frequency: 0-400kHz
RS232 debugging interface
In-position signal output
Drive Mode: Double Pulse, Pulse+Direction
Incremental Encoder 1000PPR-5000PPR
Cooling: Natural cooling or forced cooling
Ambient Temperature: 0℃-50℃
Humidity: 40%RH-90%RH
Operating Temperature: 0℃-50℃
Storage Temperature: -20℃-65℃
Dimension: 119x76x33mm
Weight: 0.4kg

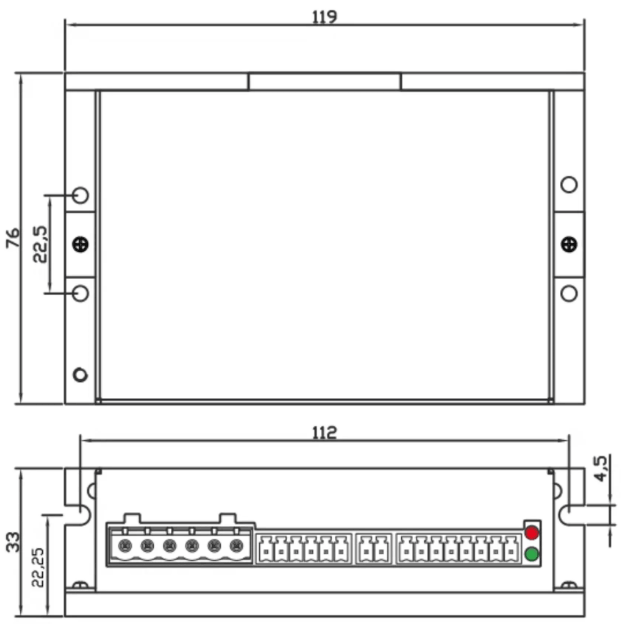

Overall Size
