Size 42mm NEMA 17 Linear Actuator Closed-loop Stepper Motor Non-captive Type 40mm Stack Lead 2mm with 1000CPR Encoder

Size 42mm NEMA 17 Linear Actuator Closed-loop Stepper Motor Non-captive Type 40mm Stack Lead 2mm with 1000CPR Encoder

$60.00

In Stock:

5

Model: 42AI40EC-2004N-200N82

Weight: 0.45KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 17 Closed loop Linear Stepper Motor: This size 42mm model is a NEMA 17 Non-captive type lead screw linear actuator closed-loop stepper motor with a 40mm body length & a 1000cpr incremental optical encoder, 1.8degree step angle and 2.0A rated current. It is integrated with a Φ8mm diameter, 200mm lead screw length, the linear travel is 2mm per revolution/0.01mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 17 Closed loop Linear Stepper Motor Specification

NEMA 17 Closed loop Linear Stepper Motor

  • Part Number: 42AI40EC-2004N-200N82
  • Motor Type: Non-captive
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 2.0A
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 40mm
  • Lead Screw Length: 200mm
  • Lead Screw Diameter: Φ8mm
  • Lead/Revolution: 2mm
  • Lead/Step: 0.01mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 350g
  • Stepper Drive: CL42C

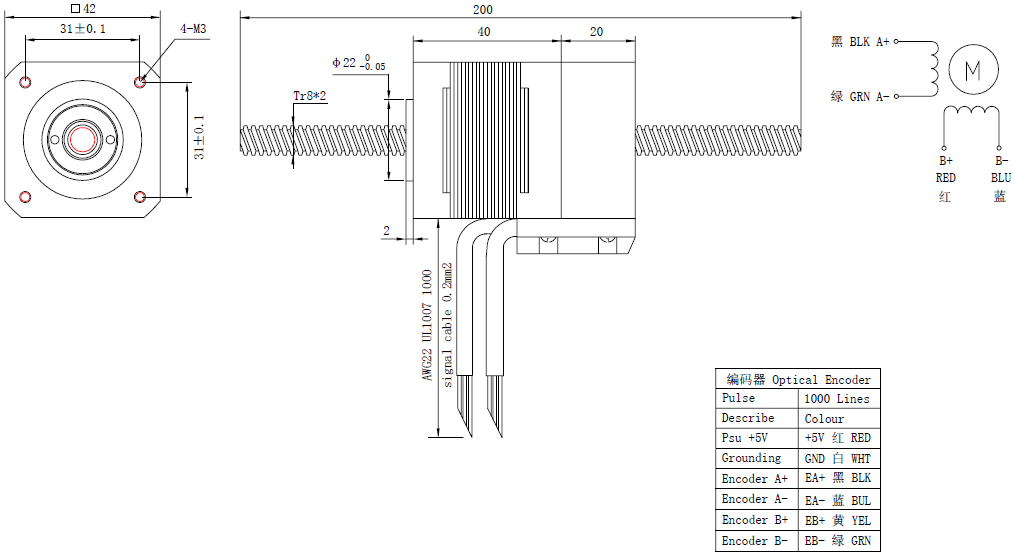

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
