Digital Stepper Drive M420B 0.25-2.0A 12-36VDC for NEMA 6, 8, 11, 14, 16, 17 Stepper Motor

$30.00

In Stock:

10

Model: M420B

Weight: 0.15KG

Certificated: CE, RoHS

Brand: OKD Drive

Ships From China

10 in stock

The NEMA 14 Stepper Motor Drive M420B is a fully digital stepper driver developed with advanced DSP control algorithm based on the latest motion control technology. It provides an input voltage 12-36VDC and output current 0.25-2.0A. This motor drive controller M420B is definitely capable of powering 2 phase Stepper Motors of NEMA 6, 8, 11, 14, 16 and 17.

NEMA 14 Stepper Motor Drive Specifications

  • Manufacturer Part Number: M420B
  • Logic Input Voltage: 5V/24V
  • Output Current: 0.25-2.0A(1.42RMS)
  • Input Voltage: 12-36VDC
  • Microsteps: 200-25600
  • Pulse Input Frequency: 0-100kHz
  • Drive Mode: Pulse+Direction
  • Cooling: Natural cooling or forced cooling
  • Ambient Temperature: 0℃-50℃
  • Humidity: 40%RH-90%RH
  • Operating Temperature: 0℃-50℃
  • Storage Temperature: -20℃-65℃
  • Dimension: 86x55x20mm
  • Weight: 0.15kg

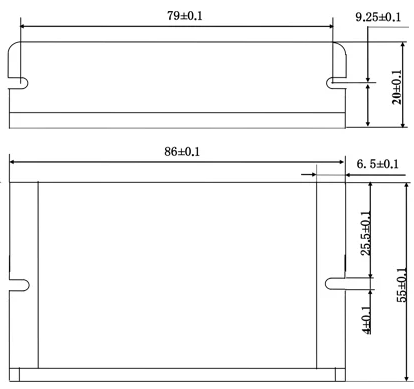

Overall Size

NEMA 14 Stepper Motor Drive
