Size 35mm NEMA 14 L=34mm High Precision Planetary Gearbox Reduction Stepper Motor

Size 35mm NEMA 14 L=34mm High Precision Planetary Gearbox Reduction Stepper Motor

$80.00 – $95.00

In Stock:

10

Model: 35AI34-1004S-HGXX

Weight: 0.35KG

Certificated: ISO, CE, RoHS

Ships From China

NEMA 14 Precise Geared Stepper Motor: This compact geared stepper motor has a frame size 35-34mm with rated current 1A, integrated with a HG series high precision planetary gearbox that has a wide range of gear ratio 4 to 70. It is an ideal choice for the applications that require high torque or low speed but high precision motion control.

NEMA 14 Precise Geared Stepper Motor SpecificationNEMA 14 Precise Geared Stepper Motor

  • Part Number: 35AI34-1004S-HGXX
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 0.18Nm w/o gearbox
  • Rated Current/phase: 1.0A
  • Frame Size: 35x35mm
  • Motor Length: 34mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Gearbox Type: Planetary
  • Gear Ratio: 4-70:1
  • Efficiency: 96%-94%
  • Backlash at No-load: 12arcmin-15arcmin
  • Gearbox Length: 38mm-44.5mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Stepper Drive: FLKH2D1228DC

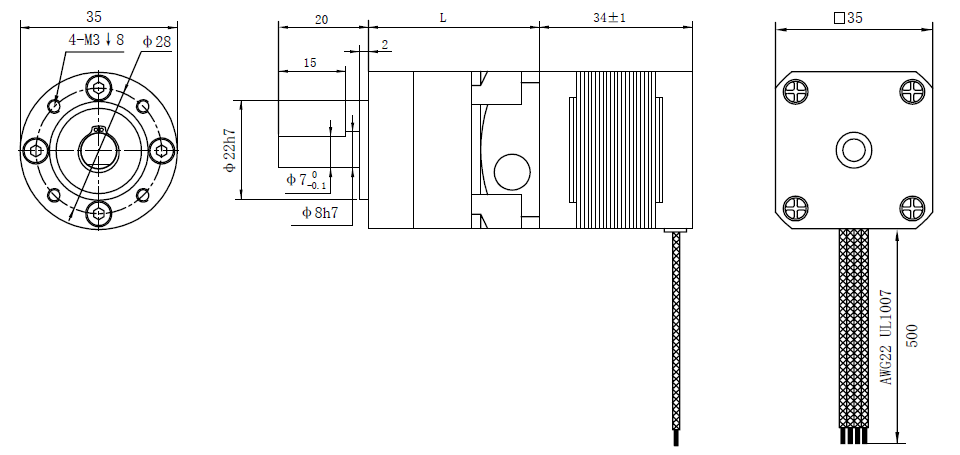

Overall Size

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)

Gearbox Length(L)=38mm for ratio 5/1, 10/1; 44.5mm for ratio 20/1, 50/1, 70/1.

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
