Size 35mm NEMA 14 Linear Actuator Stepper Motor Non-captive Type 34mm Stack Lead 4mm Length 200mm

Size 35mm NEMA 14 Linear Actuator Stepper Motor Non-captive Type 34mm Stack Lead 4mm Length 200mm

$40.00

In Stock:

5

Model: 35AI34-1004N-200N64

Weight: 0.3KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 14 Linear Stepper Noncaptive: This size 35mm model is a NEMA 14 Non-captive type lead screw linear actuator stepper motor with a 34mm body length, 1.8 degree step angle and 1.0A rated current. It is integrated with a Φ6mm diameter, 200mm lead screw length, the linear travel is 4mm per revolution/0.02mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 14 Linear Stepper Noncaptive Specification

NEMA 14 Linear Stepper Noncaptive

  • Part Number: 35AI34-1004N-200N64
  • Motor Type: Non-captive
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 1.0A
  • Driving Voltage: 12-24VDC
  • Frame Size: 35x35mm
  • Body Length: 34mm
  • Lead Screw Length: 200mm
  • Lead Screw Diameter: Φ6mm
  • Lead/Revolution: 4mm
  • Lead/Step: 0.02mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 250g
  • Stepper Drive: FLKH2D1228DC

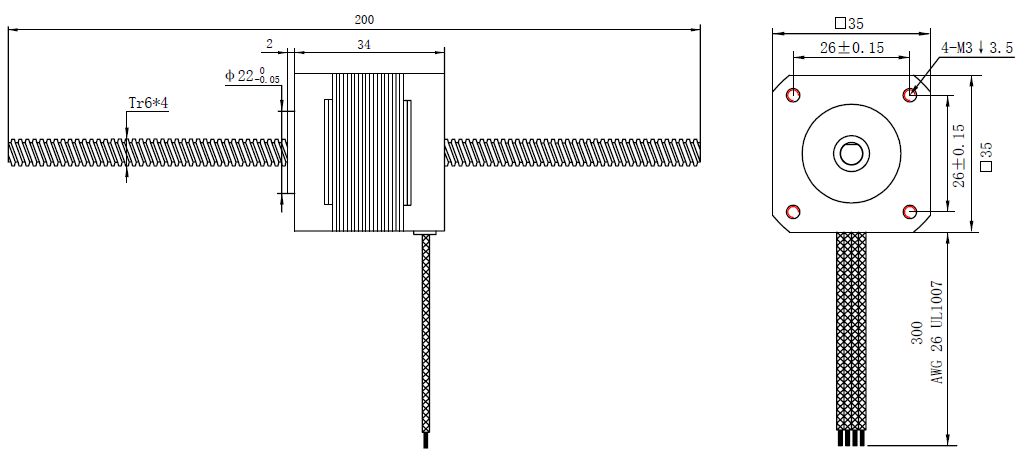

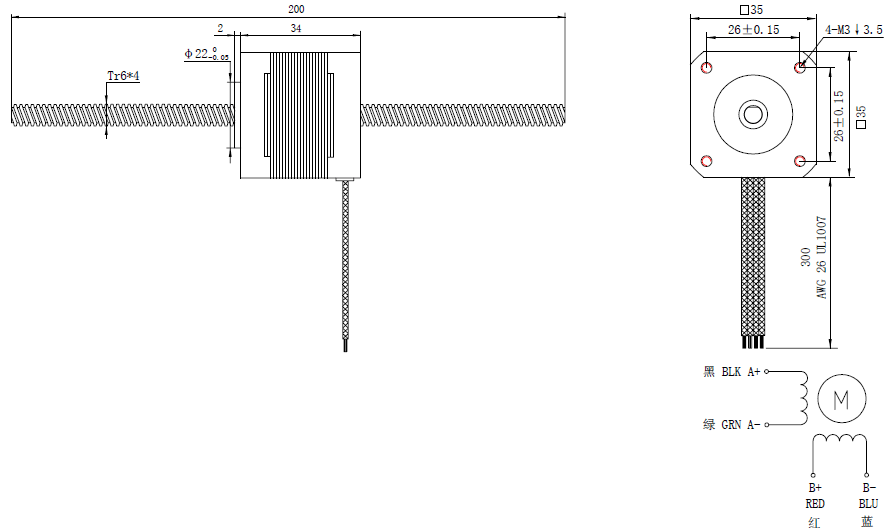

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
