Size 42mm NEMA 17 Linear Actuator Stepper Motor Non-captive Type 34mm Stack Lead 2.54mm Length 200mm

Size 42mm NEMA 17 Linear Actuator Stepper Motor Non-captive Type 34mm Stack Lead 2.54mm Length 200mm

$50.00

In Stock:

5

Model: 42AI34-1504N-200ND6

Weight: 0.3KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 17 Precise Linear Stepper Motor 34mm: This size 42mm model is a NEMA 17 Non-captive type lead screw linear actuator stepper motor with a 34mm body length, 1.8degree step angle and 1.5A rated current. It is integrated with a Φ6.35mm diameter, 200mm lead screw length, the linear travel is 2.54mm per revolution/0.0127mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

NEMA 17 Precise Linear Stepper Motor 34mm Specification

NEMA 17 Precise Linear Stepper Motor 34mm

  • Part Number: 42AI34-1504N-200ND6
  • Motor Type: Non-captive
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 1.5A
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 34mm
  • Lead Screw Length: 200mm
  • Lead Screw Diameter: Φ6.35mm
  • Lead/Revolution: 2.54mm
  • Lead/Step: 0.0127mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 250g
  • Stepper Drive: FLKH2D1228DC

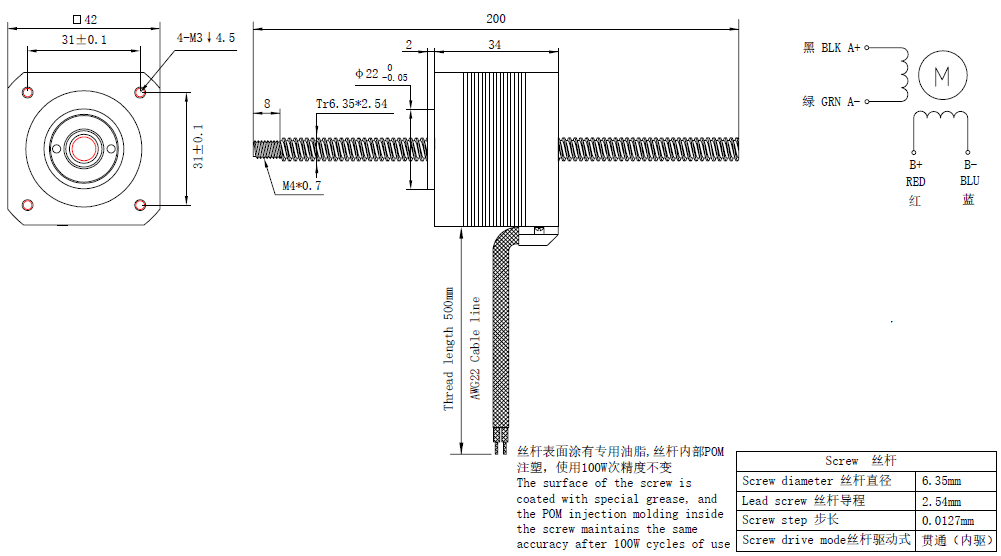

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
